█ Performance Paramete

█ SDB Series DTOF Laser Ranging Sensor - an industrial-grade solution for ultra-long distance and high-speed measurement

ltra-long range coverage: Provide a variety of range options from 50m to 1500m to meet diverse ranging needs from near to far.

High-speed and high-frequency measurement: The maximum measurement frequency can reach 20kHz, and the response is extremely fast, suitable for dynamic target monitoring.

Industrial-grade accuracy and reliability: measurement accuracy of ±10cm (within 10 meters) and 1% (10 meters away), suitable for complex industrial sites.

Rich interface configuration: supports RS485-Modbus RTU, 4-20mA and IO output, flexible integration and easy system docking.

Rugged design: IP65 protection, operating temperature -20°C ~ +60°C, aluminum alloy housing, suitable for harsh environments.

Safe and reliable: uses 905nm invisible laser, which meets Class 1 eye safety standards.

◆SDB laser ranging module is a high-precision solution developed by our company for industrial-grade long-distance ranging applications. It has been widely used in many fields such as material level/liquid level measurement, intelligent transportation system, driving positioning, and positioning of large equipment in steel mills and ports, making it an ideal choice for long-distance and high-demand measurement tasks.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Reasons for customer selection

The core reason for choosing the SDB series is its impressive 1500-meter ultra-long range capability and extremely fast response of up to 20kHz. The sensors integrate DTOF (Direct Time of Flight) technology into a compact body measuring 69×52×52mm, providing the perfect balance between long-range and highly dynamic measurements.

Its excellent industrial-grade reliability (operating temperature -20°C ~ +60°C, IP65 protection) and flexible interface configuration (RS485/4-20mA/IO) enable it to stably cope with a variety of complex and demanding industrial environments.

Due to its powerful performance, this sensor is ideal for the following long-range, demanding applications:

Material level and liquid level measurement: Used for material height monitoring in large storage tanks and silos.

Intelligent transportation system: vehicle speed measurement, vehicle distance monitoring, etc.

Ports and steel mills: precise positioning and collision avoidance of large trucks, overhead cranes, and gantry cranes.

Long-range industrial monitoring: Alternative to traditional ranging methods to provide non-contact accurate data.

With its ultra-long range, high-speed performance, and industrial-grade durability, the SDB series is a reliable partner in the field of long-distance precision ranging.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Advantages and features

Ultra-long measurement range: Provide a variety of range options from 50m to 1500m (50m/100m/200m/300m/600m/1000m/1500m) to meet the ranging needs of different scenarios.

Excellent accuracy and stability: The accuracy is ±10 cm within 10 meters and 1% of the measured value outside 10 meters, ensuring the reliability and accuracy of the data.

Extremely high measurement frequency: The maximum frequency can reach 20kHz, which can quickly respond to dynamic changes and capture the distance information of high-speed moving targets.

Strong environmental adaptability: Operating temperature range -20°C ~ +60°C, protection level IP65, aluminum alloy housing is rugged and durable, can handle various harsh industrial environments.

Flexible Interface and Installation: RS485-Modbus RTU and 4-20mA analog output (or IO interface) are standard and equipped with M12 aviation plugs, making installation and wiring quick and easy.

Human eye safety and long life: 905nm invisible laser is used, which meets Class 1 laser safety standards, with a long service life, safe and reliable.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Applications

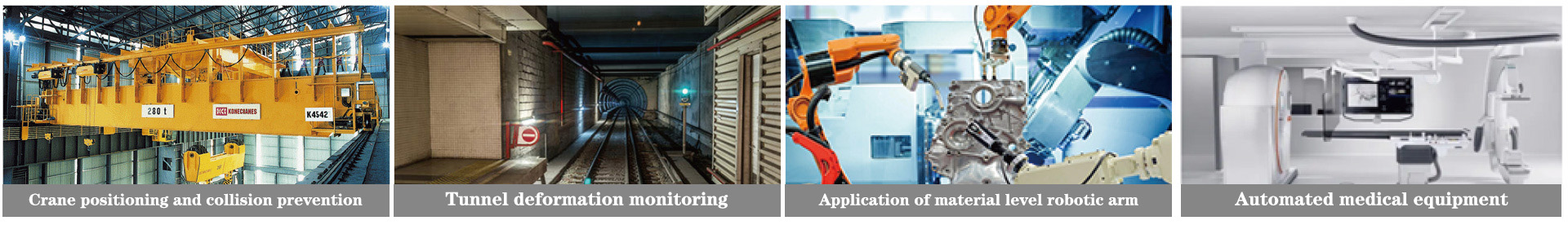

Level Measurement | Intelligent Transportation | Driving Positioning | Steel mill port
