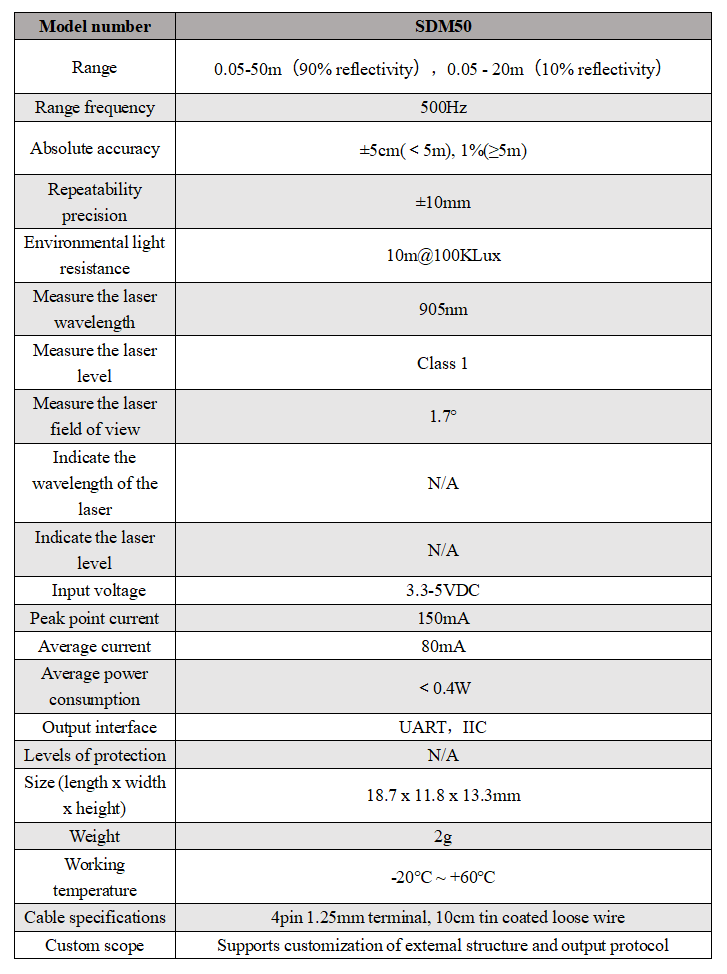

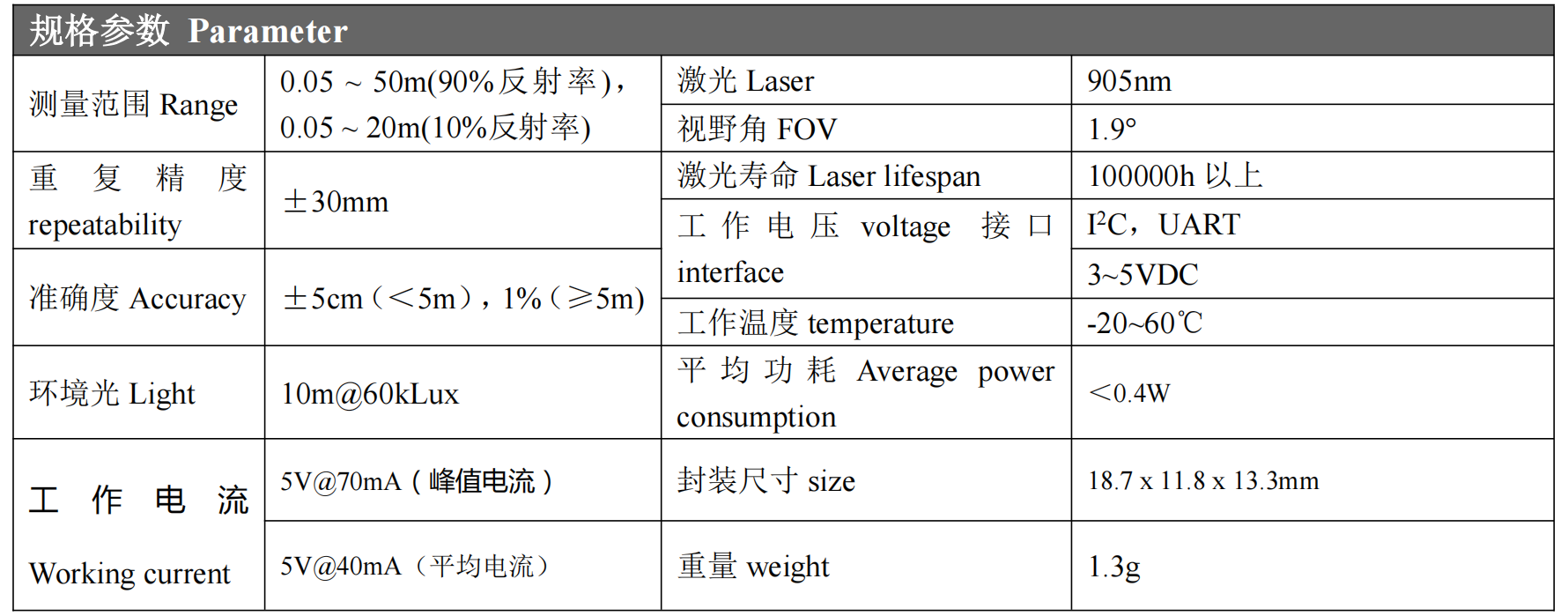

█Performance parameters

█SDM50--Single-point LiDAR based on DTOF technology

Fully integrated single-channel dToF, 18.7mm ultra-small size

High sensitivity 905nm laser sensor, resistant to 100KLux strong light interference

Support UART/IIC interface, ±5cm high-precision ranging

50m ultra-long range, 500Hz high frequency response

The working temperature is -20°C~+60°C, suitable for all scenarios

The SDM50 is a fully integrated single-point LiDAR module based on DTOF technology with a highly sensitive 905nm laser sensor with a maximum ranging range of 50m (90% reflectivity). Its built-in Direct Time Of Flight algorithm, combined with fast TDC architecture and anti-jamming algorithm, can achieve high-precision ranging of ±5cm (<5m) and 1% (≥5m) in a 100KLux bright light environment, with a resolution as low as 1mm. The module adopts 3.3~5V wide voltage power supply, with a peak power consumption of only 0.4W, supports UART/IIC dual interface communication, and has built-in temperature compensation function. With a package size of only 18.7x11.8x13.3mm and a weight of 2g, the miniaturized design fits into a compact space. With 500Hz high-frequency response and -20°C~+60°C wide temperature range working capability, SDM50 has become an ideal solution for UAV obstacle avoidance, industrial robot navigation, AGV safety monitoring and outdoor high-speed measurement, defining the industrial-grade accuracy benchmark with extreme lightweight and anti-environmental interference performance.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Reasons for customer selection

With a volume of only 18.7x11.8x13.3mm and a weight of 2g, this LiDAR module is extremely lightweight and easy to integrate. Customers are widely used in UAV altitude obstacle avoidance, industrial robot navigation, AGV safety monitoring, traffic automation and outdoor high-speed measurement scenarios, and can still stably output centimeter-level accuracy data in strong light environments to meet the needs of harsh industries.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

Based on the Direct Time-of-Flight Algorithm (DTOF), the fully integrated single-point ranging architecture simplifies the system design.

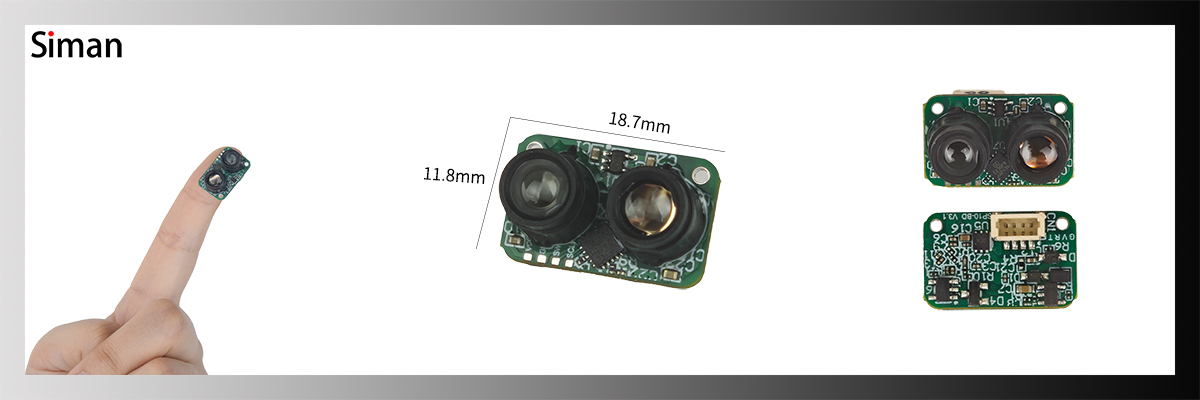

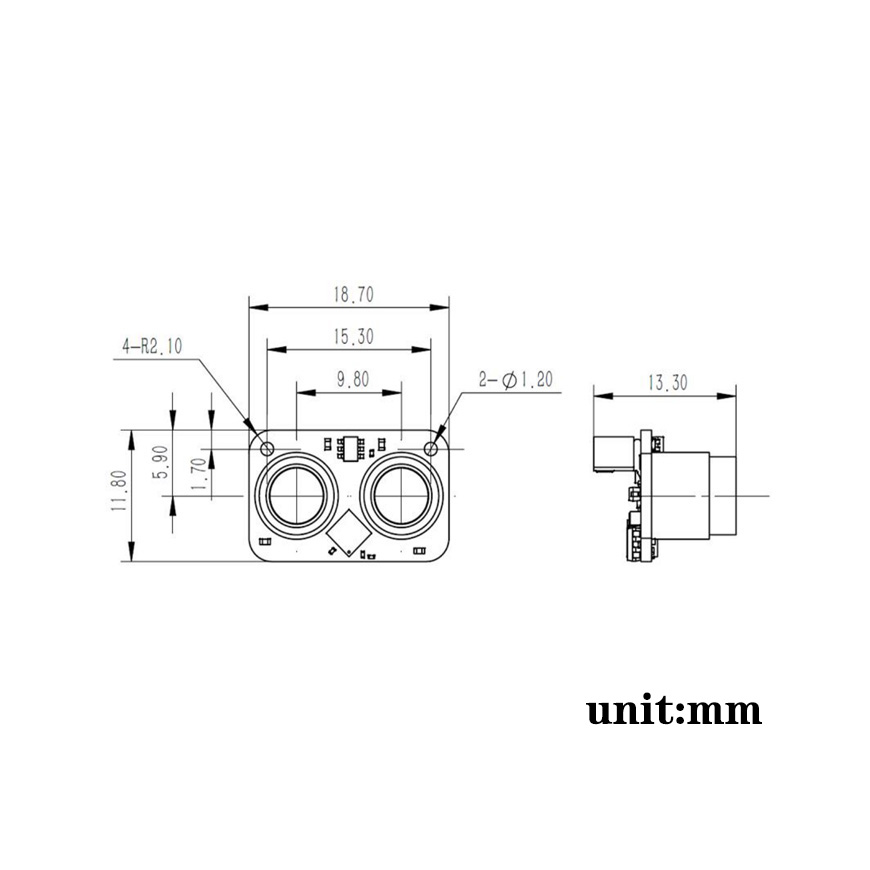

Measuring only 18.7×11.8×13.3 mm and weighing 2 grams, it is extremely lightweight and suitable for compact spaces.

Built-in anti-100KLux strong light interference algorithm, support 500Hz high-frequency ranging, dynamic target real-time tracking.

3.3~5V wide voltage input, built-in temperature compensation, working temperature coverage -20°C~+60°C, suitable for harsh environments.

Support UART/IIC communication interface

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

It is used in various industrial applications, such as UAV height fixing, obstacle avoidance, robot obstacle avoidance, industrial-grade light curtain, AGV obstacle avoidance, high-speed measurement and safety monitoring in the field of transportation and industrial automation.
