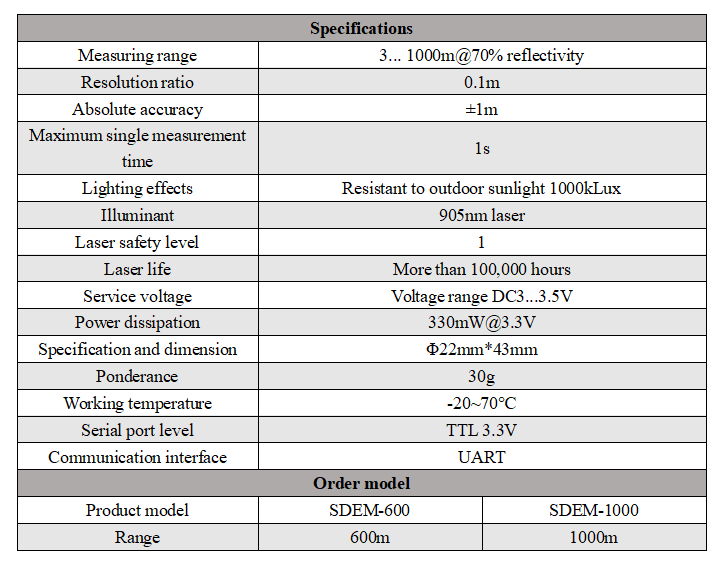

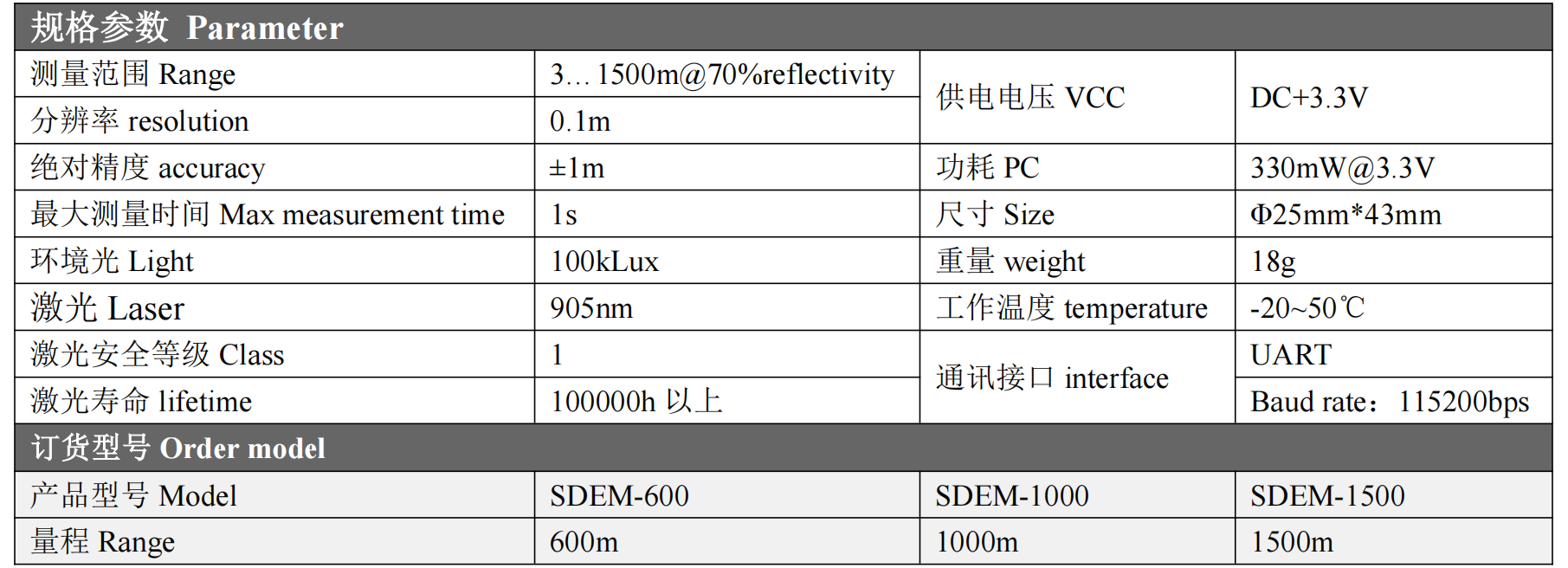

█Performance Parameters

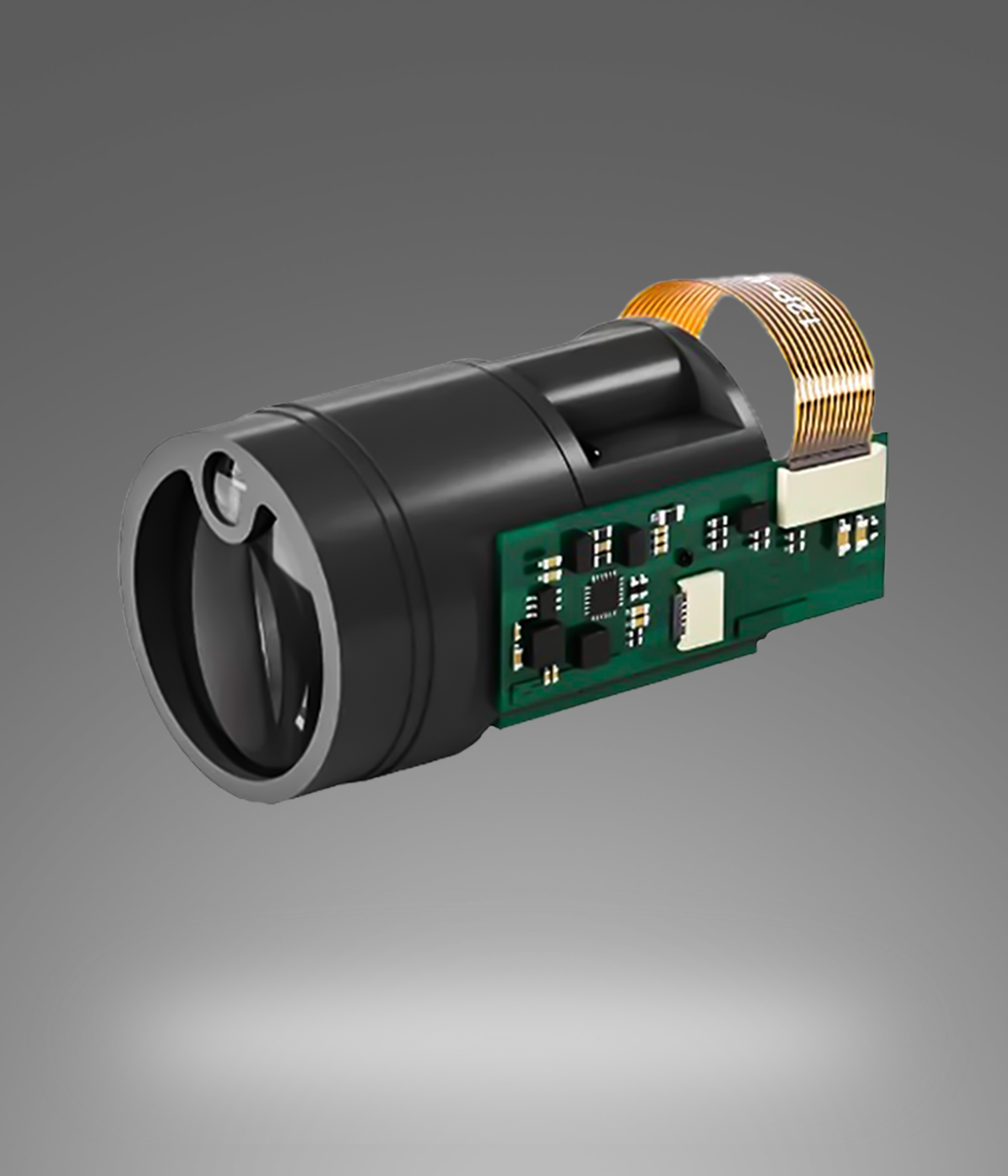

█ SDEM--1000m high-precision laser ranging module ITOF laser ranging module

SDEM series phased laser distance measurement module

Support single measurement, continuous measurement

Long distance: 600m/1000m, indoor and outdoor available

◆SDEM series laser ranging module is the latest generation of outdoor long-range lidar ranging module, which can measure up to 1000m, with the characteristics of small size, light weight, strong measurement ability, high measurement accuracy, and simple installation and operation.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

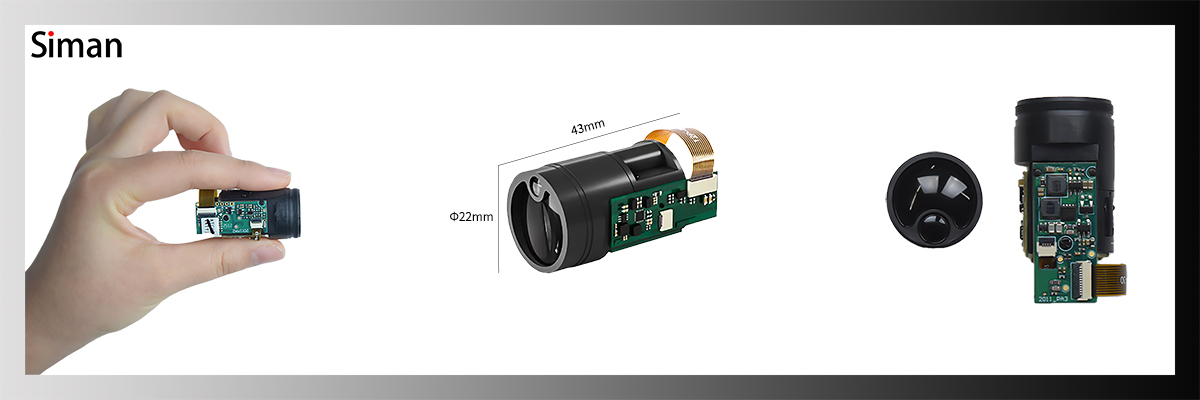

This long-distance laser ranging module is not only small in size (Φ22mm*43mm), but also easy to install and has a long measurement distance, which is commonly used by customers in drones, construction industry, coal mining industry, sweeping robot industry, measurement of container deformation, interior decoration room height and width measurement, etc.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

The measuring range is 1000m and 600m, and the ranging speed is fast

meter accuracy

High and low temperature resistance -20~+50°C

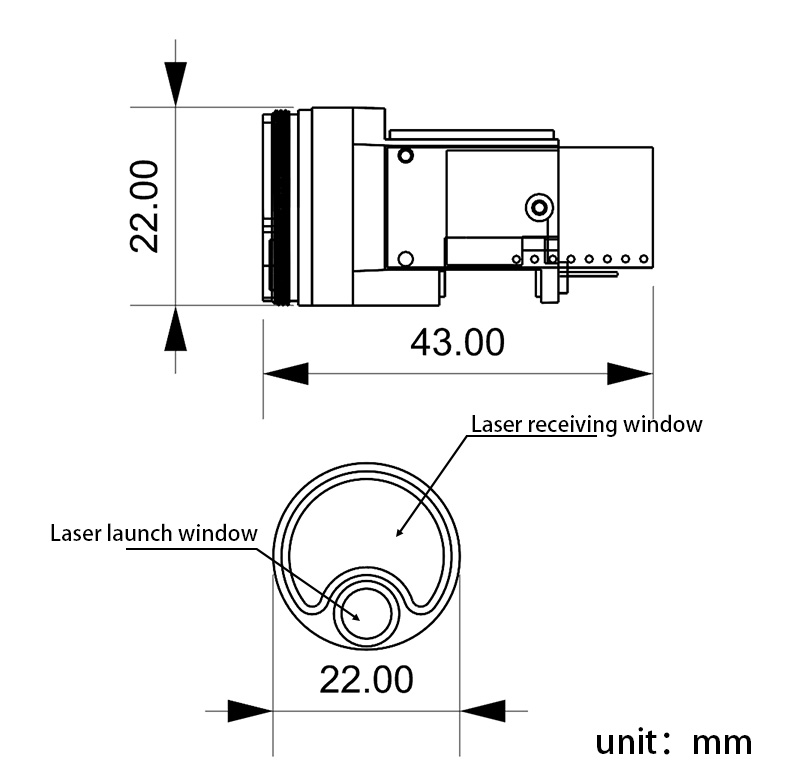

Small size, 43mm long and 25mm in diameter

UART TTL level outputs the distance value of the measured object, which is easy to use

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

Drone|Gun aiming equipment|l imaging embedded integrated range measurement|Optoelectronic pod
