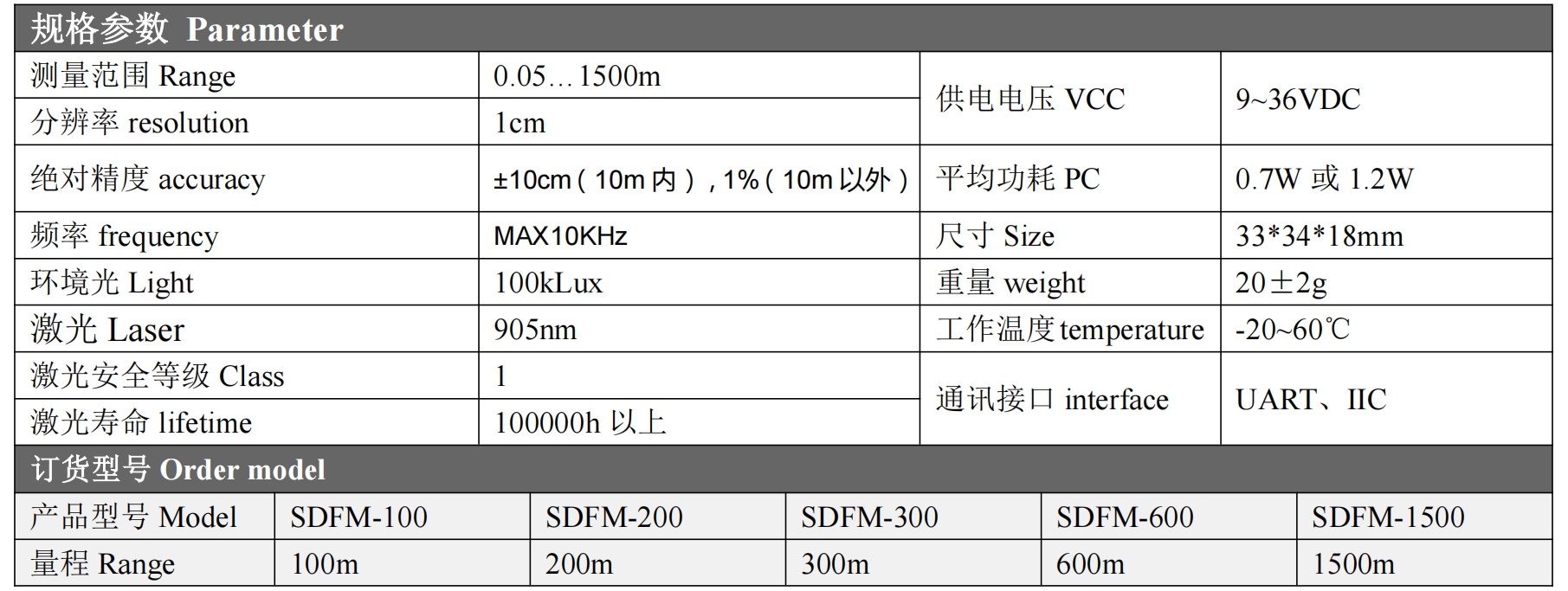

█Performance Parameter

█ SDFM--Single-point LiDAR based on DTOF technology

Fully integrated single-channel dToF, 18.7mm ultra-small size

High sensitivity 905nm laser sensor, resistant to 100KLux strong light interference

Support UART/IIC interface, ±5cm high-precision ranging

50m ultra-long range, 500Hz high frequency response

The working temperature is -20°C~+60°C, suitable for all scenarios

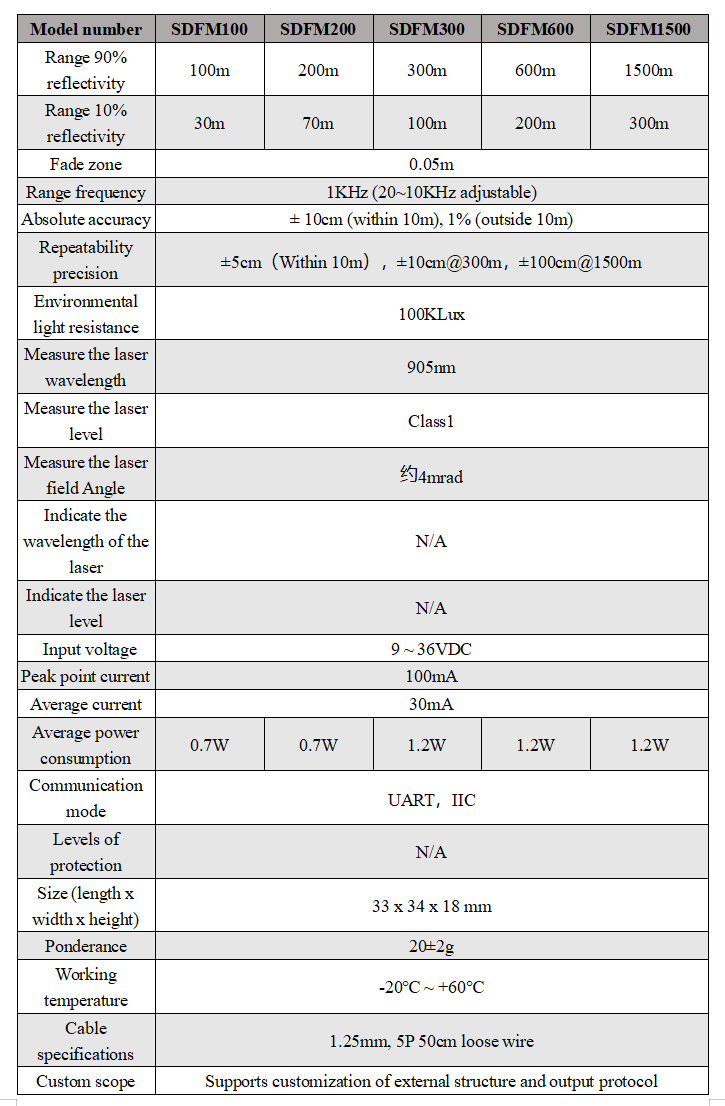

The SDFM series is a medium and long-range LiDAR module based on DTOF (Direct Time of Flight) technology, providing multiple models from 100m to 1500m (90% reflectivity), equipped with 905nm high-sensitivity laser sensor, suitable for indoor and outdoor complex environments. Through the direct time-of-flight algorithm and anti-interference optimization design, it can achieve high-precision ranging of ±10cm (within 10m) and 1% (10m away) under 100KLux strong light interference, with a resolution of 1cm, ensuring data reliability in harsh scenarios.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Reasons for customer selection

With its extreme miniaturization (40% smaller than the standard model) and 2G ultra-lightweight design, this lidar module greatly reduces the load of the equipment and is suitable for high-dynamic scenarios such as drone fixed height obstacle avoidance, industrial robot navigation, and AGV safety monitoring. Even in the environment of strong light interference, it can still output centimeter-level accuracy data (±5cm@10m) to meet the strict requirements of industrial level such as traffic automation and outdoor high-speed measurement.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

based on the direct time-of-flight algorithm, simplifies the system design and improves the efficiency and reliability of ranging.

built-in anti-100KLux strong light interference technology, the data stability in outdoor strong light and electromagnetic complex environment reaches the industrial standard.
supports 10KHz ultra-high-speed measurement (adjustable), ± 10cm accuracy (within 10m), 1% accuracy (10m away), resolution 1cm, and accurate capture of dynamic targets.

9-36VDC wide voltage input, built-in temperature compensation, working temperature coverage -20°C~+60°C, not afraid of harsh environmental challenges.

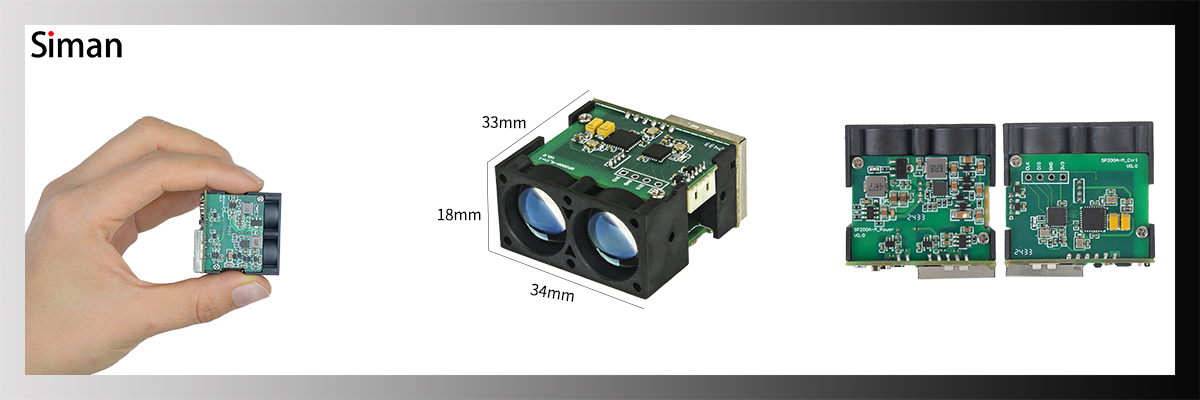

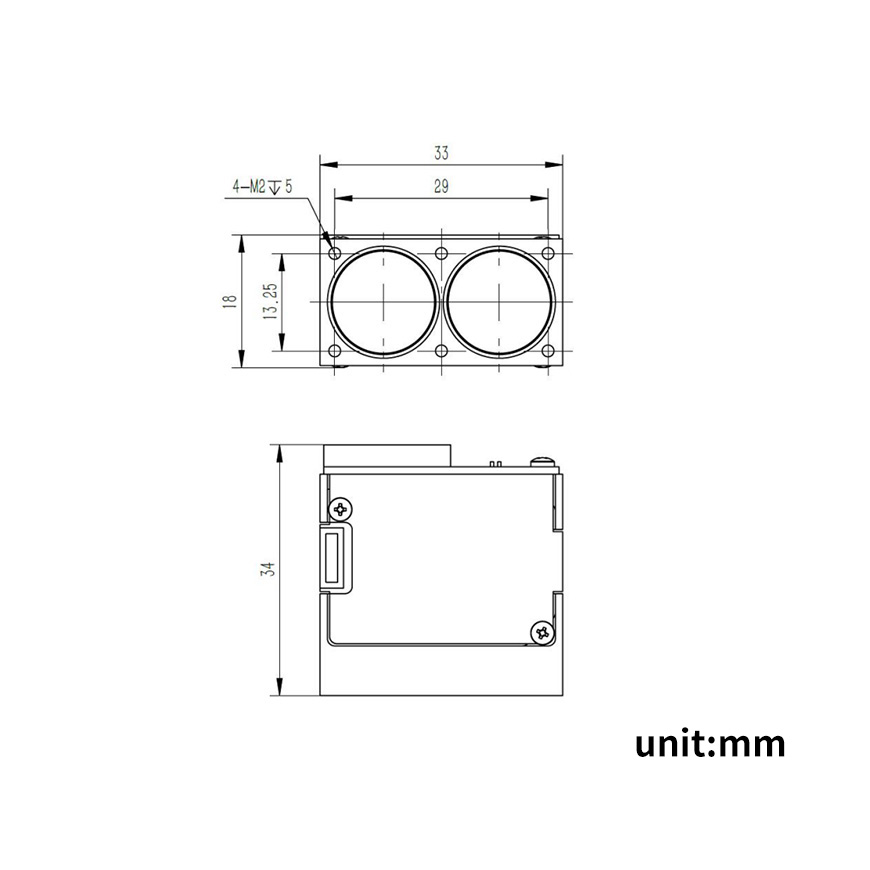

The volume is only 33×34×18mm, the weight is 20±2g, the protection level is optimized, and the shape and protocol customization are supported, and it can be flexibly embedded in various devices.

supports UART/IIC communication, quickly connects to industrial control systems, and meets the integration needs of diverse scenarios.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

It is used in various industrial applications, such as UAV height fixing, obstacle avoidance, robot obstacle avoidance, industrial-grade light curtain, AGV obstacle avoidance, high-speed measurement and safety monitoring in the field of transportation and industrial automation.
