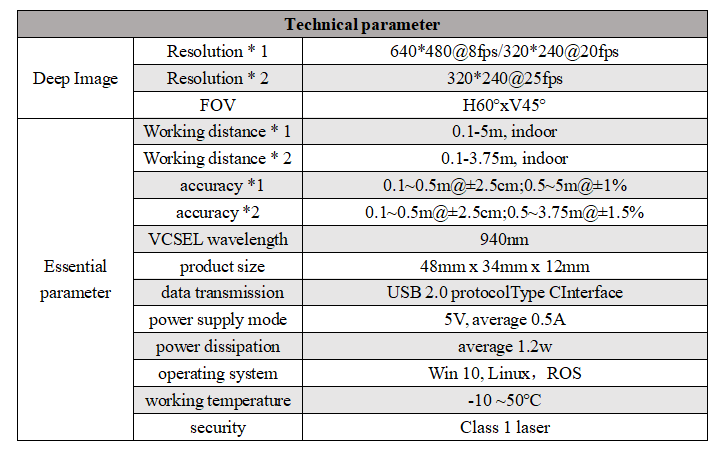

█ Performance Parameters

█Mobile Mapping|5m 3D Solid-State LiDAR

Centimeter-level measurement accuracy

Typical measurement range: 0.1-5 m @ interior white wall

Resolution: 640*480/320*240

High dynamic measuring range

Depth and signal amplitude timing synchronization are supported

Adjustable range and frame rate

◆The SGA-05U solid-state LiDAR uses continuous wave modulation (CWiToF) in i-ToF (indirect ToF). Through the proportional relationship of the energy value collected by the sensor in different time windows, the signal phase is resolved, and the time difference between the transmitted signal and the received signal is indirectly measured, and then the depth is obtained.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

SGA-05U is a solid-state LiDAR equipped with a ToF image sensor with a resolution of 320*240, which uses ToF technology to obtain three-dimensional information of objects and spaces, with excellent performance such as long distance and low power consumption, providing users with convenient and efficient 3D perception capabilities.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

H60° x V45°，0.1-5m

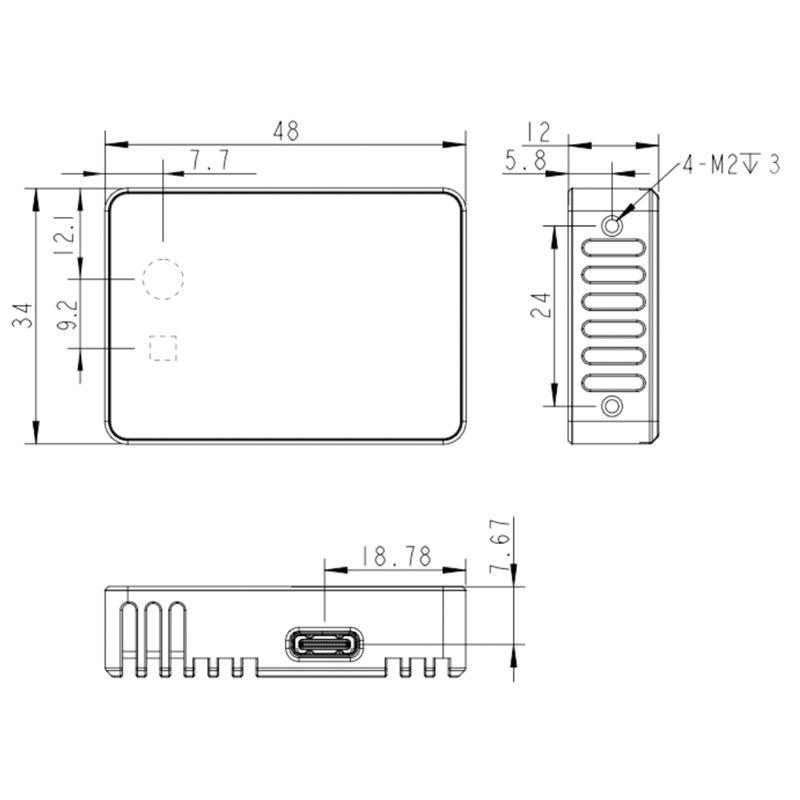

Smaller size: 48*34*12 (mm)

Accuracy: 1% @白墙

heat dissipation design, with high stability and excellent high and low temperature accuracy

Certification: FCC, EMC, CE, RoHS, REACH

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

Used in a variety of industrial autonomous applications such as AGVs, autonomous forklifts, patrol robots, and inspection robots; It can also be used for other applications such as mobile mapping, 3D surveying, etc.
