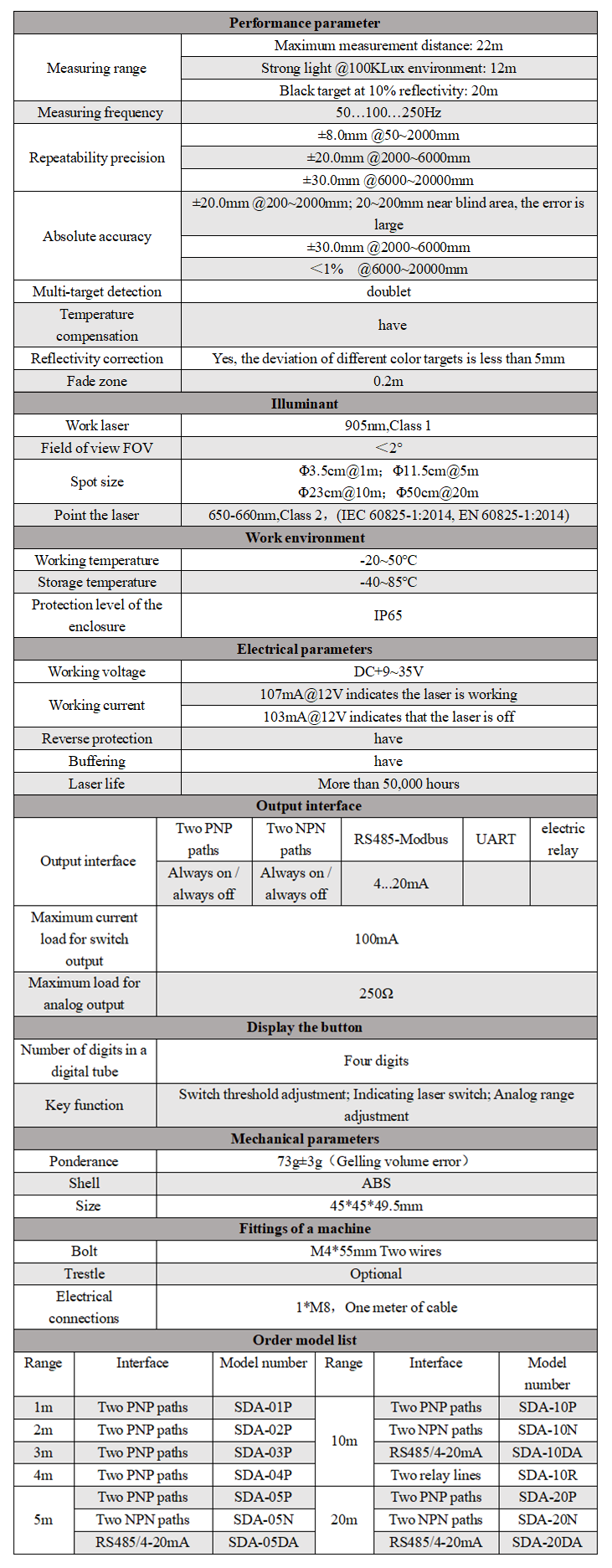

█ Performance Paramete

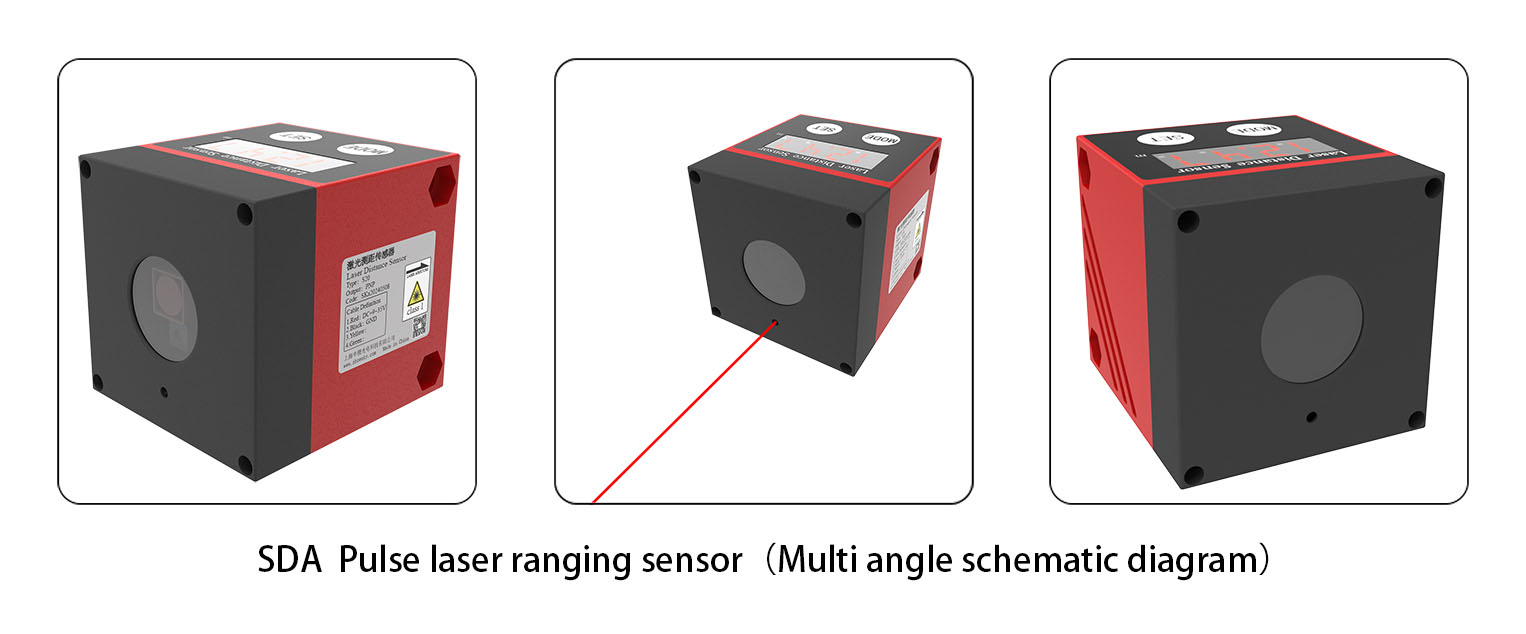

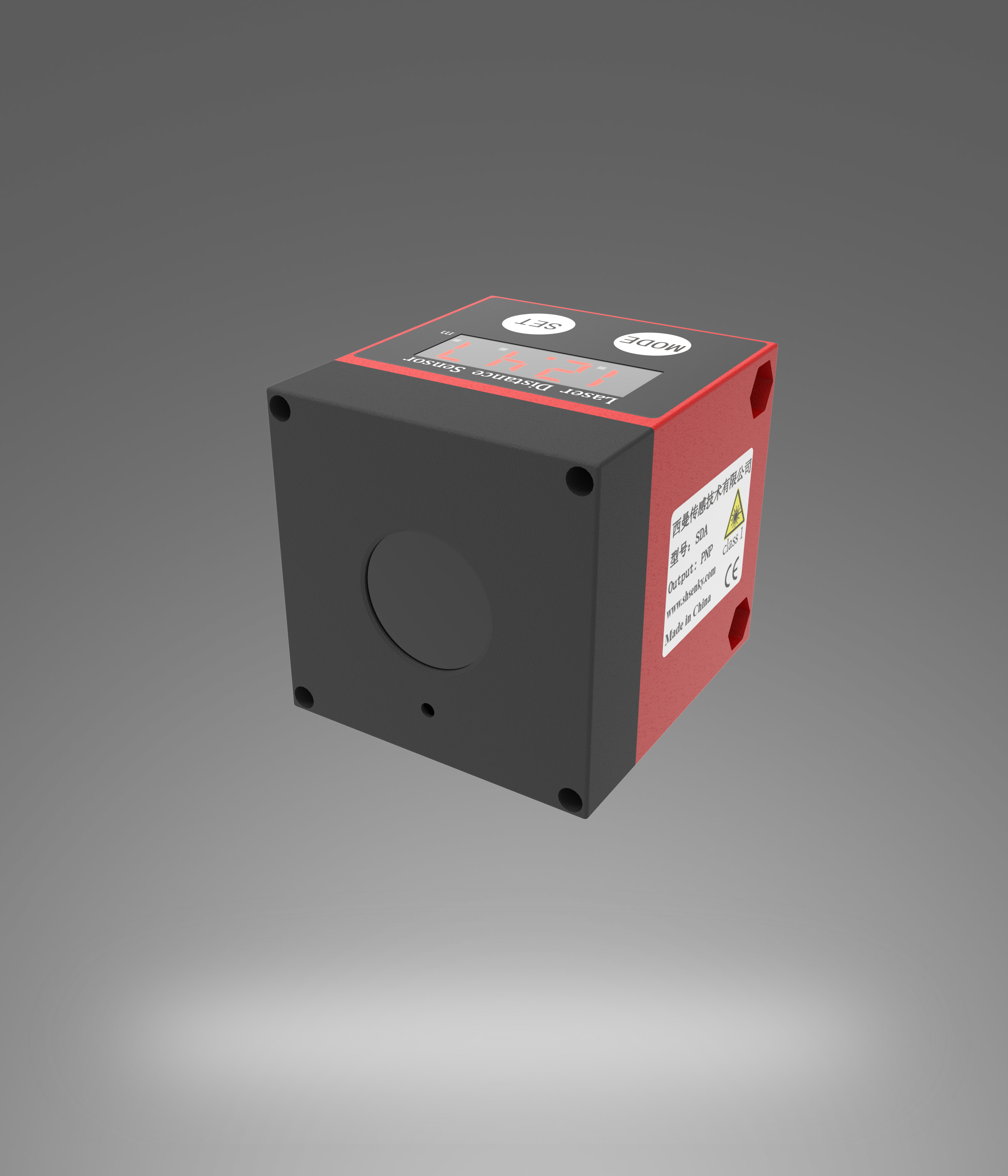

█ SDA--20m High Frequency Laser Ranging Sensor TOF Pulse Laser Ranging

Click here for 3D results

Millimeter-level high-precision measurement, absolute accuracy ± 1mm, resolution up to 1mm

Strong anti-interference ability, stable operation in 3KLux ambient light and reflectivity as low as 0.2

Multi-range and multi-frequency options cover 5m/20m/70m, and the frequency is configurable at 5/30/100Hz

RS485 with 4-20mA dual outputs, easy integration of various industrial control systems

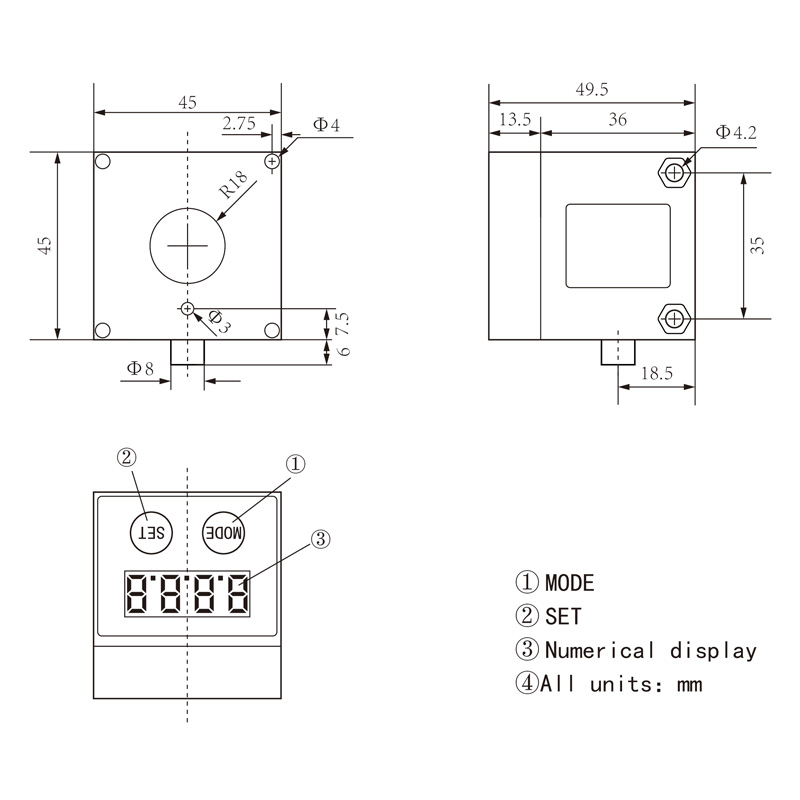

IP65 protection and compact design (60×54×36mm) for harsh industrial environments

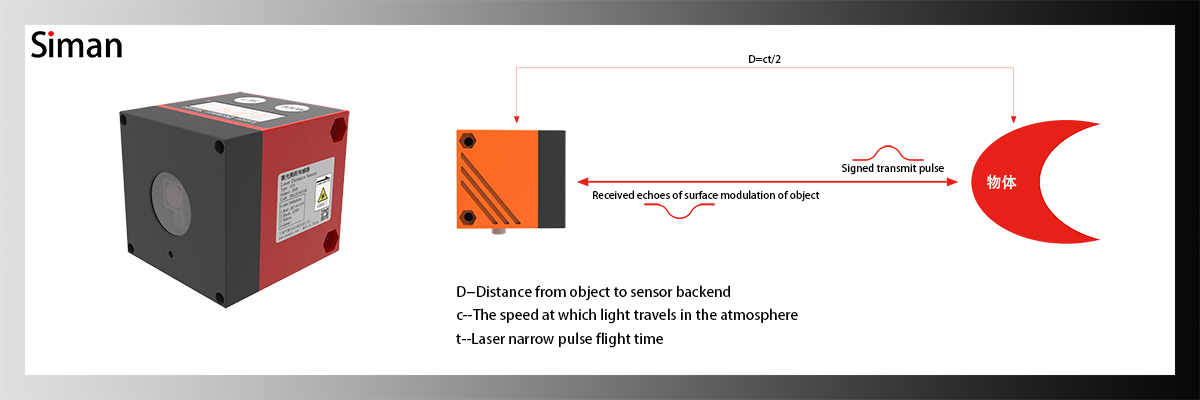

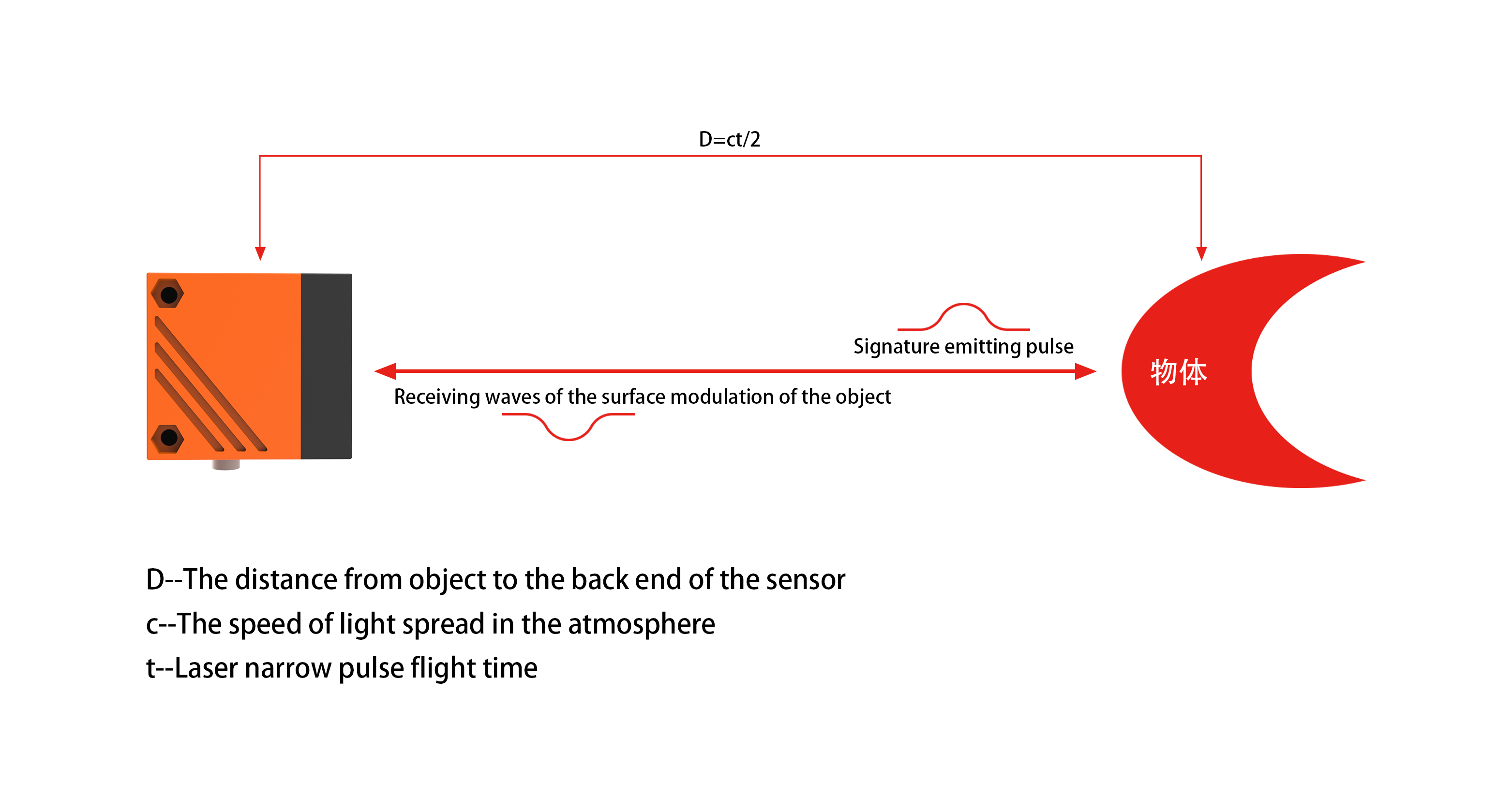

◆SDA laser ranging sensor adopts high-precision phase difference method (IToF) technology, with excellent anti-interference algorithm, can ensure millimeter-level measurement accuracy and excellent reliability even under harsh conditions such as bright light or low-reflectivity targets. Its compact size and ease of installation make it ideal for industrial positioning, warehousing logistics, and collision avoidance applications.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

The SDA series was chosen for its excellent integration and reliability. The sensor has a compact form factor (60×54×36 mm) that is easy to install and integrate, yet provides a measurement range of up to 70 meters (5 m/20 m/70 m for standard models) and achieves millimeter-level accuracy (±1 mm).

Due to its stable performance and compact size, this sensor is especially favored by customers in the following industries:

Construction & Renovation Industry: For fast, non-contact measurement of the height and width of interior spaces.

Industrial automation (e.g. stackers, driving positioning) with its robust design adapts to complex industrial environments.

Logistics and transportation: Used to measure container deformation or interior space planning.

Special equipment positioning (such as port machinery, coal mine roadway equipment), IP65 protection to ensure stable operation in harsh environments.

The SDA sensor combines high accuracy, strong anti-interference with easy installation, making it your efficient and reliable choice for medium-range precision ranging applications.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

High-precision measurement: Absolute accuracy up to ±1mm, distance resolution 1mm, suitable for precision positioning and inspection tasks.

Strong anti-interference ability: It can still work stably under the condition of ambient light intensity up to 3KLux and target reflectance as low as 0.2.

Multi-range optional: Three measurement ranges of 5m, 20m, and 70m are available to meet different distance requirements.

Frequency Adjustable: Supports three measurement frequencies: 5Hz, 30Hz, and 100Hz, adapting to different response speed requirements.

Flexible installation: compact size (60×54×36mm) and IP65 protection for indoor and outdoor industrial environments.

Rich communication interfaces: RS485 and 4-20mA output are standard for easy system integration.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

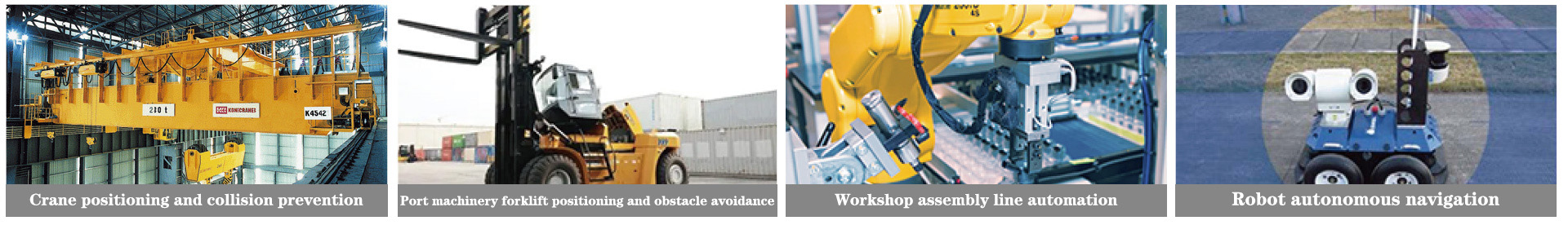

█Applications

Stacker | Driving Positioning | Positioning of storage and retrieval systems | Positioning of conveyor and traverse vehicles
