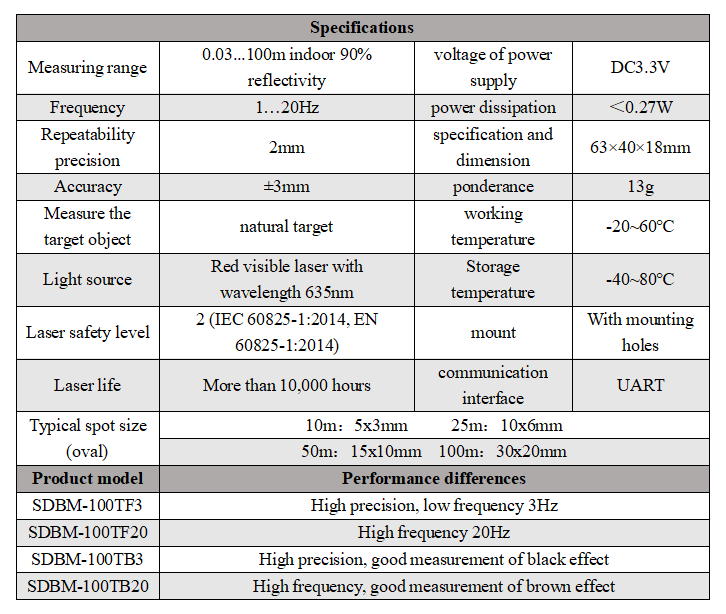

█Performance Parameters

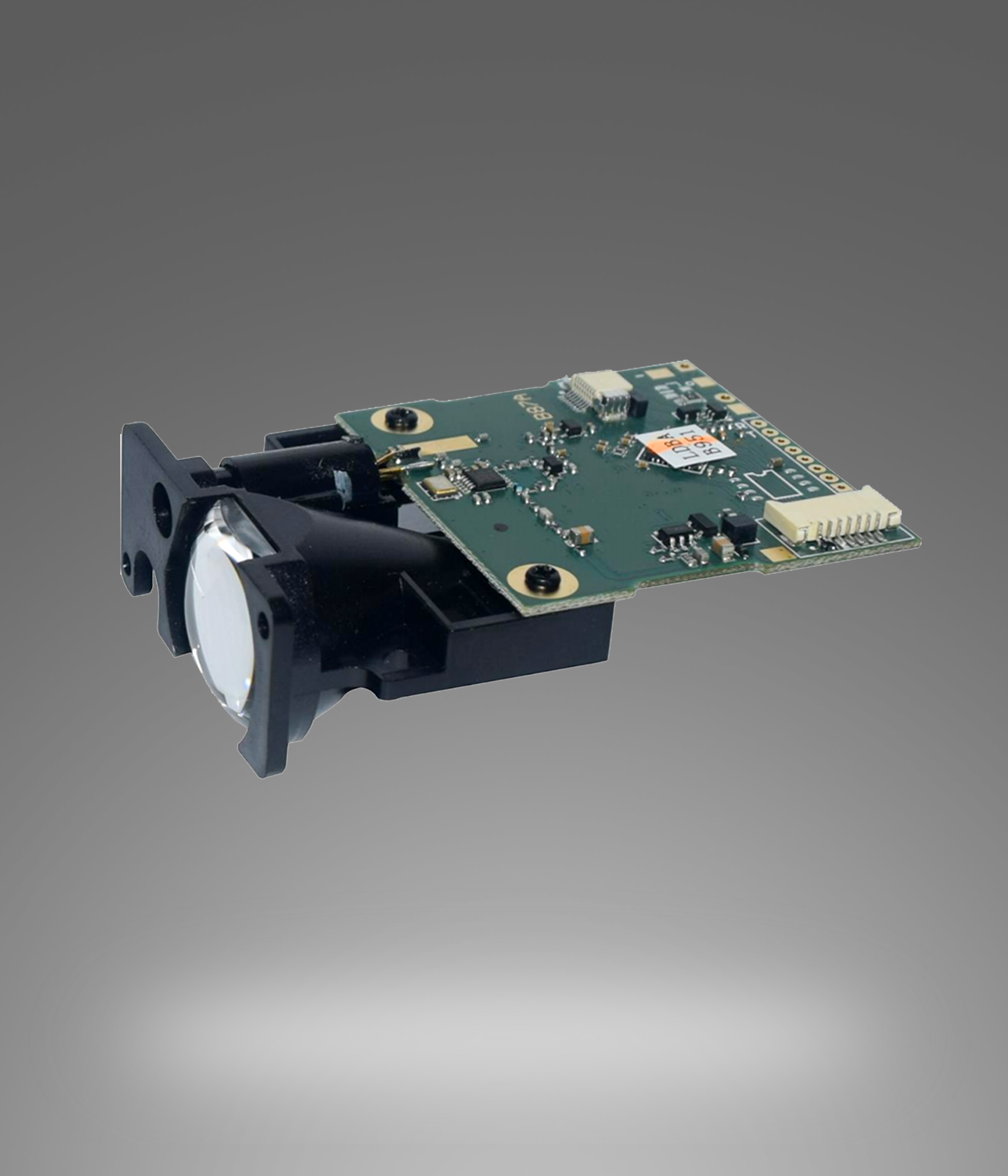

█ SDBM-100---100m high-precision laser ranging module UART phase laser ranging module

SDBM-100 series phased laser distance measurement module

Support single measurement, continuous measurement

Long distance: 100 meters, available indoors and outdoors

High precision: phased, millimeter-level accuracy

The SDBM-100 laser ranging module uses the phase method to detect the distance between target objects through the non-contact transmission and reception of lasers.

The SDBM-100 laser ranging module has been developed for fast and accurate distance measurement. Even in harsh environments, it can still show excellent performance.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

This long-distance laser distance sensor is not only small in size (63*40*18mm), but also easy to install, and the measurement distance is also good, which is often used by customers in the construction industry, coal mining industry, sweeping robot industry, measuring container deformation, interior decoration room height and width measurement, etc.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

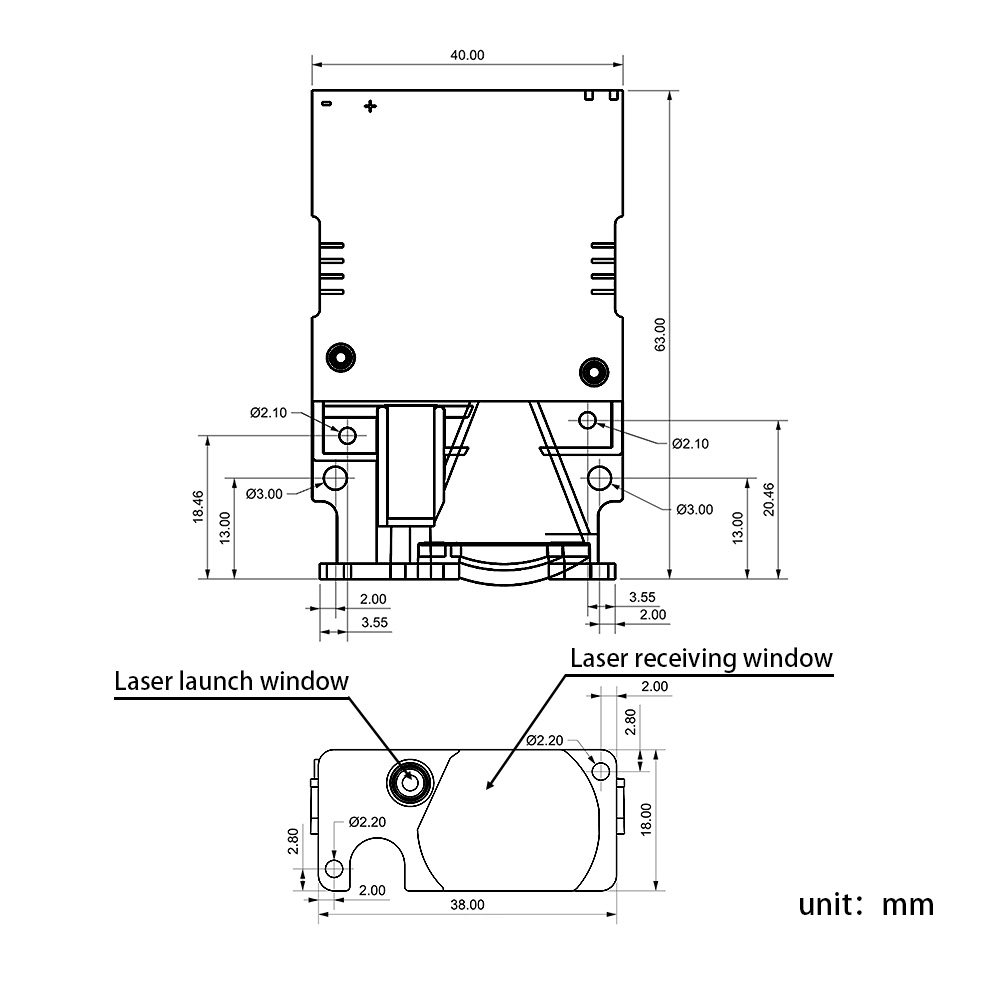

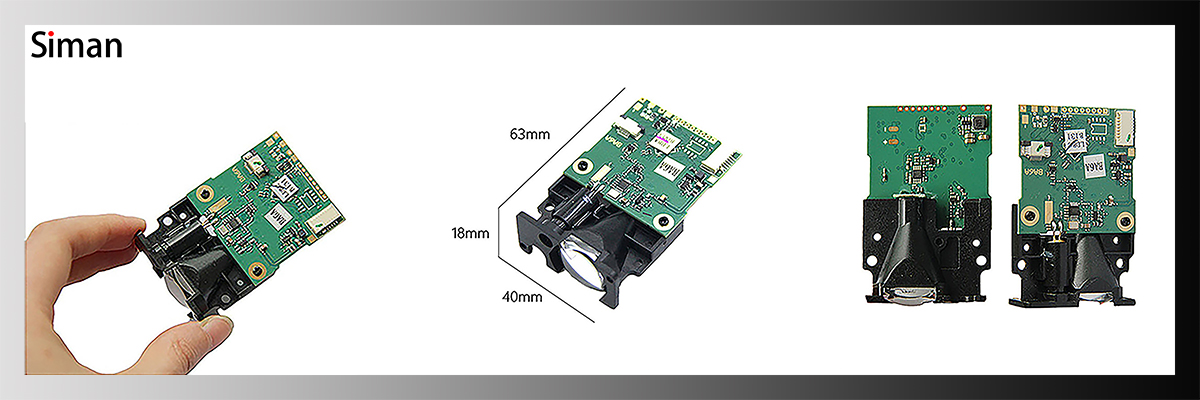

Small size: 63*40*18mm

Light weight: 13g

Accuracy: ±3 mm

Maximum measuring range: 150 m

Maximum measurement speed: 20Hz

Outdoor sunlight with reflector can be measured: 60 m

Cost-effective, low power consumption, support secondary development, easy integration

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

Miniaturization is suitable for embedded development, and is suitable for application scenarios such as robot industrial automation, security monitoring, and intelligent logistics. For example, thermal imaging embeds integrated ranging, pipeline measurement, displacement detection, track deformation, material level, vending machine gripping and positioning, robotic arm positioning and many other applications.
