█Performance Parameter

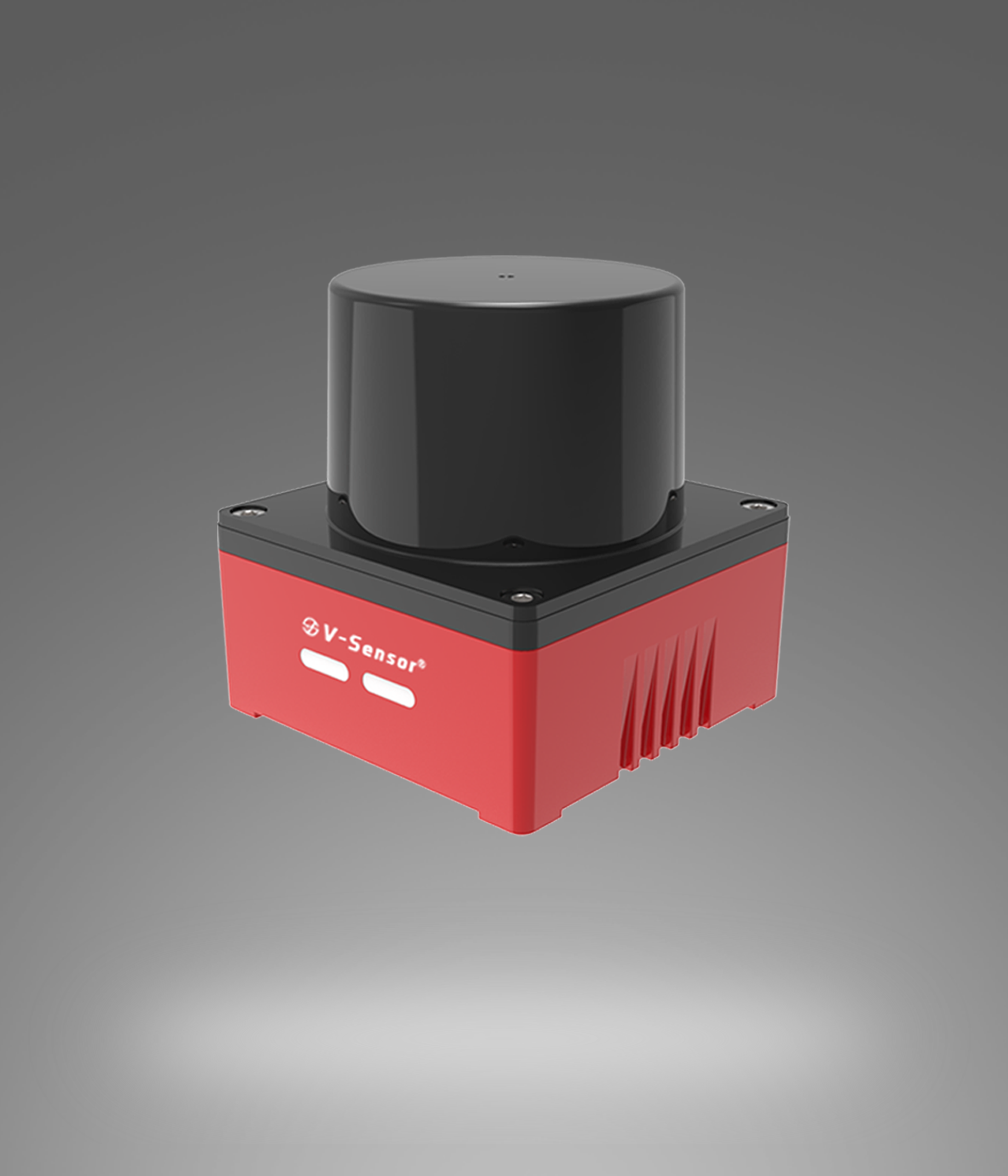

█SSA-25---25m radius 3D 360° laser scanning radar

Industrial-grade safety obstacle avoidance lidar

The rate is 10/15/25Hz, and the black target has high reflectivity

Strong resistance to sunlight interference, IP67 waterproof

The outdoor scanning radius is 25m

The SSA-25 is a 2D planar scanning lidar that scans the surrounding area on a single plane with the help of an infrared invisible laser beam. SSA-25 uses 2D polar coordinates to characterize its surroundings based on its measurement origin.

With a 360° scanning angle, the SSA-25 detects and outputs the angle, distance, and signal strength of the target, allowing the SLAM system to better identify the target.

SSA-25 is suitable for road environment perception in outdoor scenarios, and meets the needs of different industries such as robot navigation and obstacle avoidance, safety monitoring, industrial automation, and intelligent logistics.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

This 3D mini laser scanning radar is not only relatively small in size (65*65*70mm), but also easy to install, and the measurement distance is also good, which is commonly used by customers in robotics, security and surveillance, industrial automation, logistics, etc.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

Detection capability for 4% black target reflectivity greater than 8 meters

IP67 waterproofing

Sunlight resistance> 120K Lux

ESD level reaches Level 4 (EN IEC 61000-4-2:2009) 8KV contact discharge

15KV air discharge

When used in environments below moderate rain, it still has the detection capability

High-reliability industry-standard connectors and splices

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

This product is developed for outdoor autonomous mobile robots, and is also suitable for applications in various industrial scenarios, such as robotics, security and surveillance, industrial automation, and smart logistics.

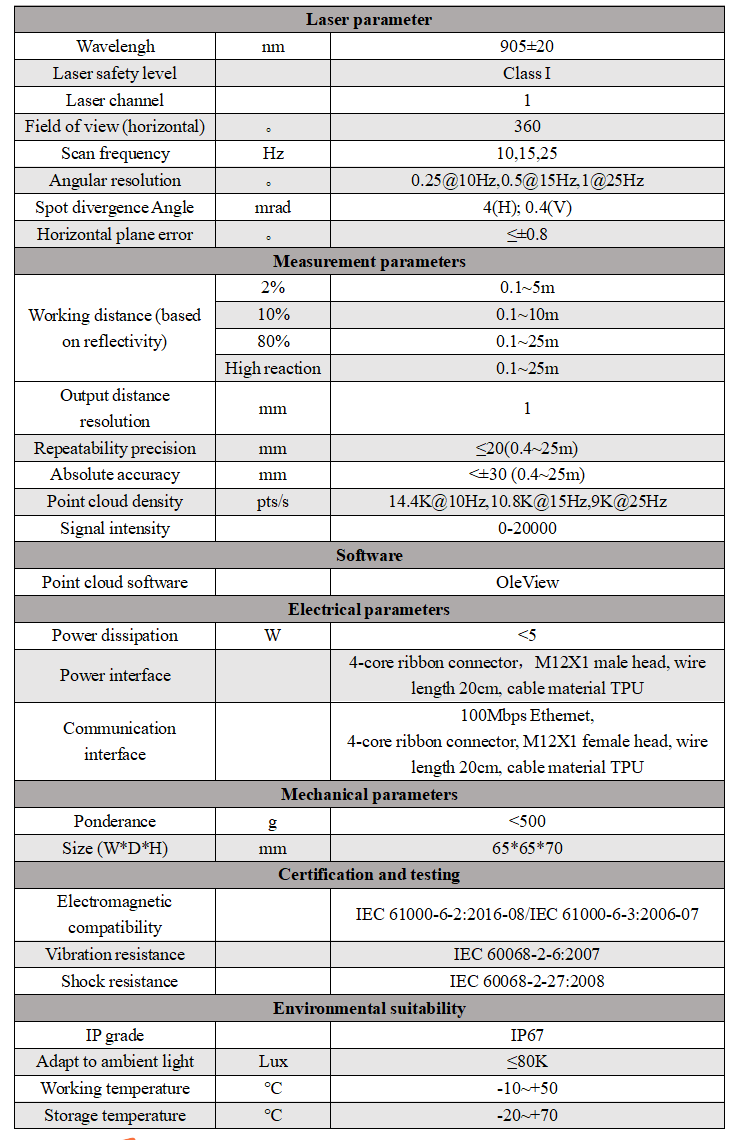

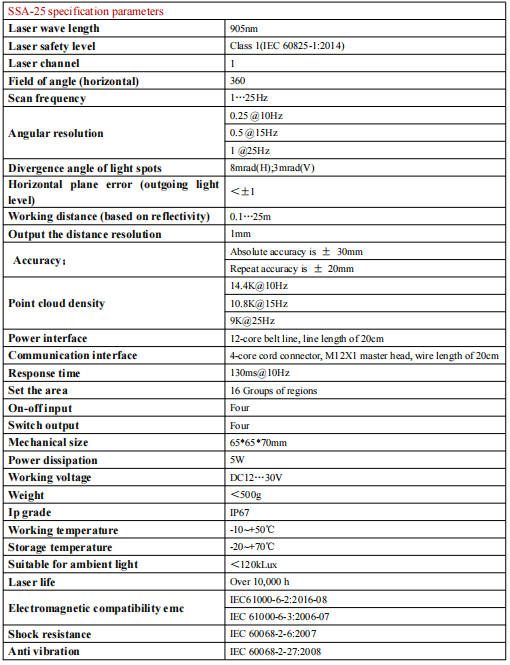

性能参数：
