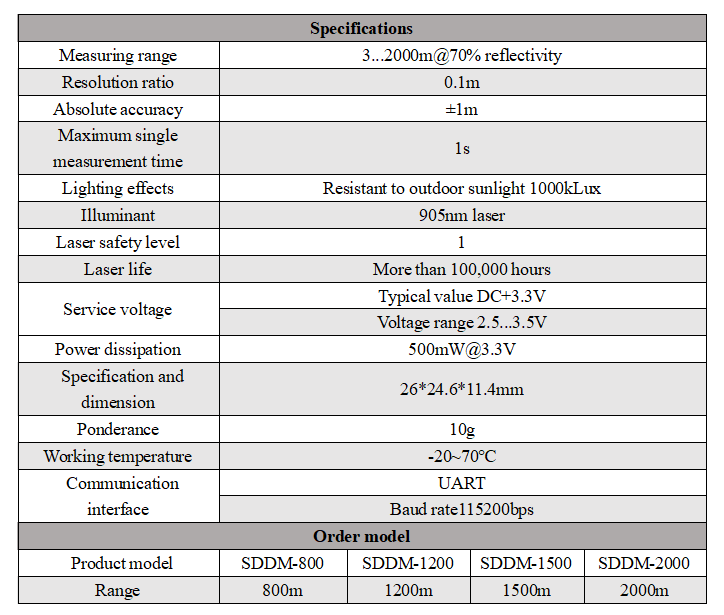

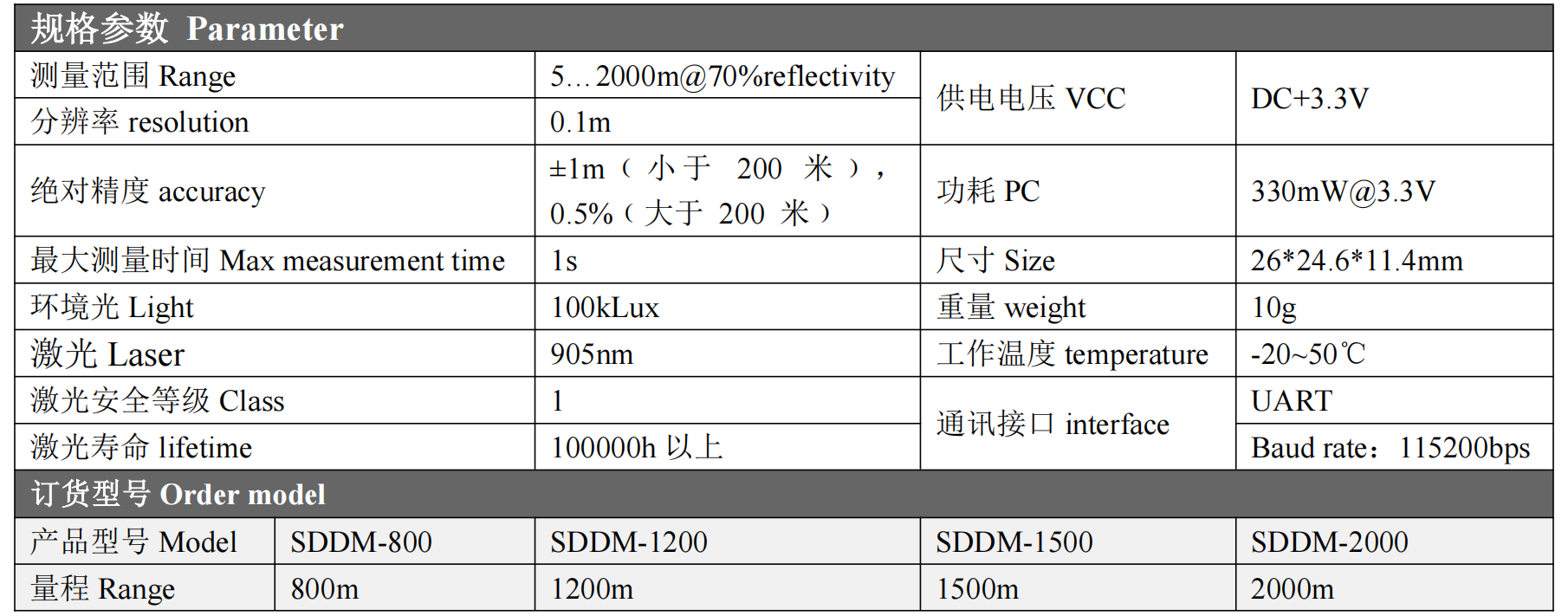

█Performance Parameters

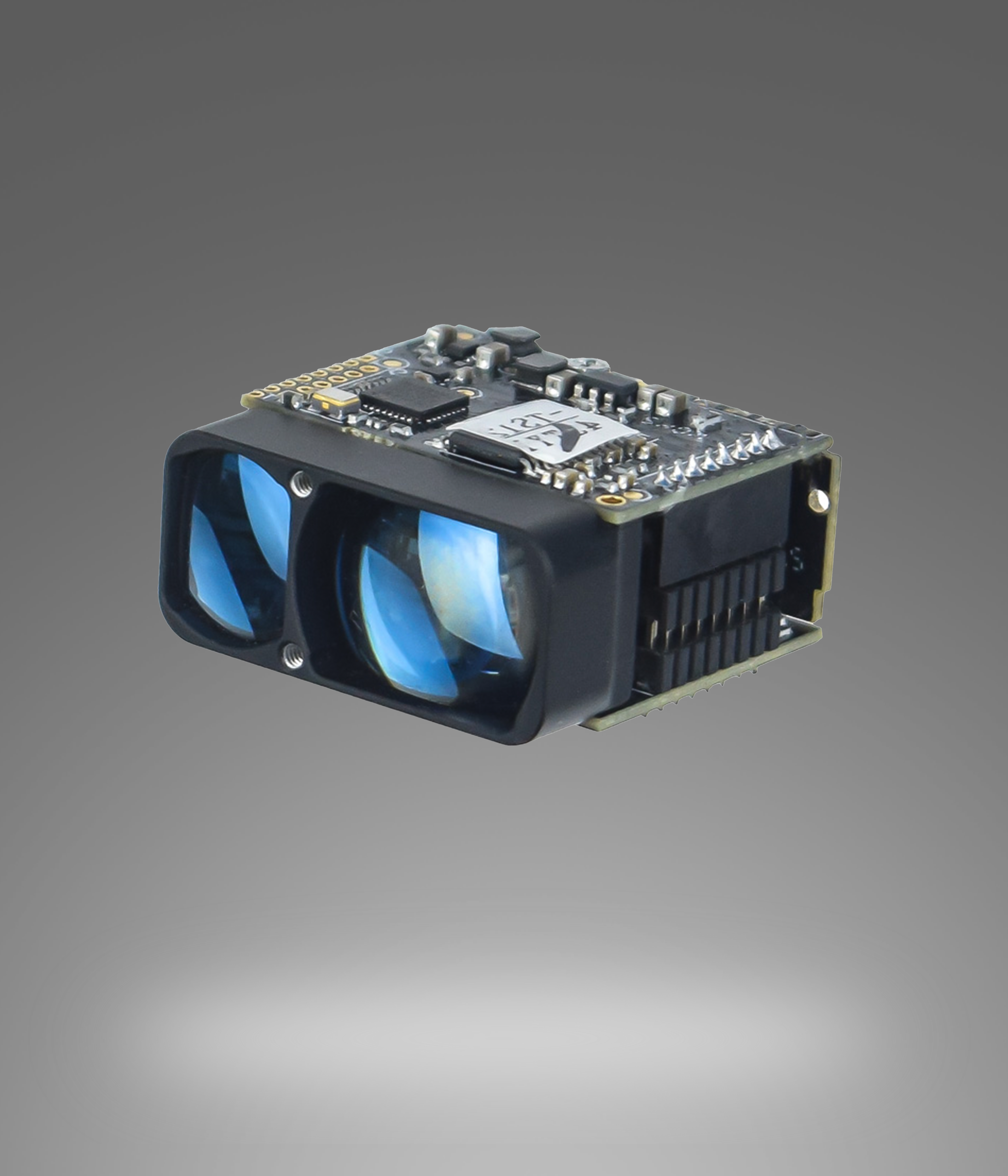

█SDDM--1500m high-precision laser ranging module ITOF laser ranging module

SDDM series phased laser distance measurement module

Support single measurement, continuous measurement

Long distance: 1500 meters, indoor and outdoor available

SDDM series laser ranging module is the latest generation of outdoor long-distance lidar ranging module with a maximum measuring distance of 1500m, which has the characteristics of small size, light weight, strong measurement ability, high measurement accuracy, and simple installation and operation. There are also a wide range of application scenarios, such as surveillance cameras, drones, photoelectric pods, gun sights, etc.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

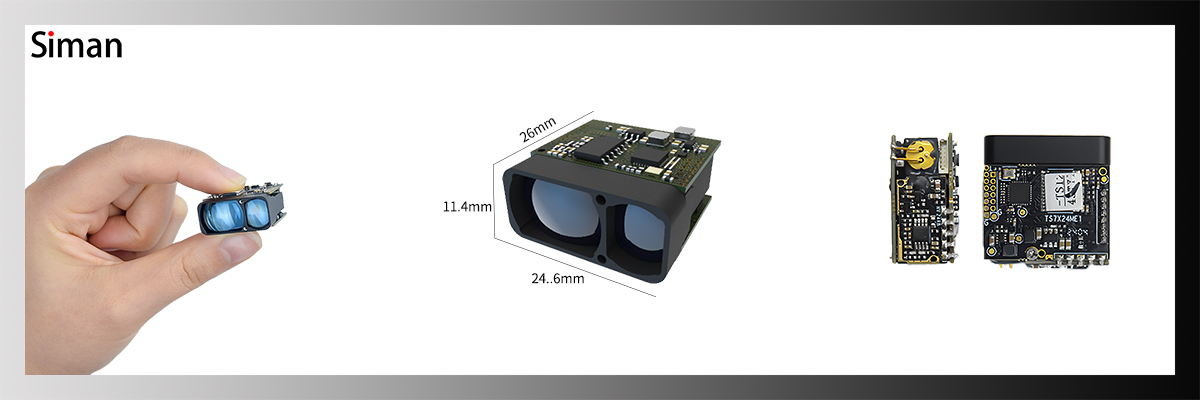

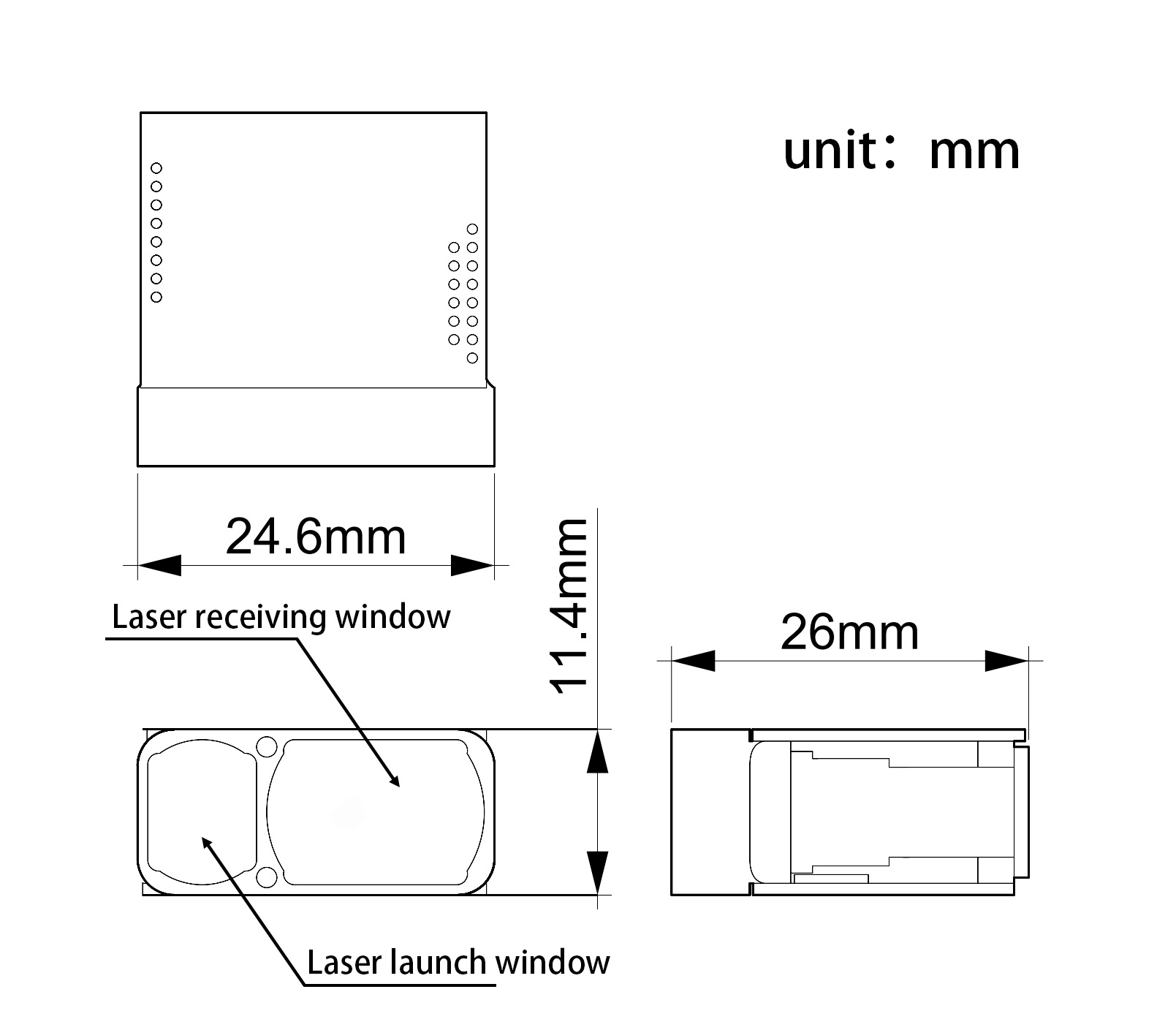

This long-distance laser ranging module is not only small in size (26mm*24.6mm*11.4mm), but also easy to install and has a long measurement distance.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

The measuring range is 1500m, 1200m, 800m, and the ranging speed is fast

meter accuracy

The product is small in size and low in power consumption

Meet eye safety class 1

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

Drone|Gun aiming equipment|l imaging embedded integrated range measurement|Optoelectronic pod
