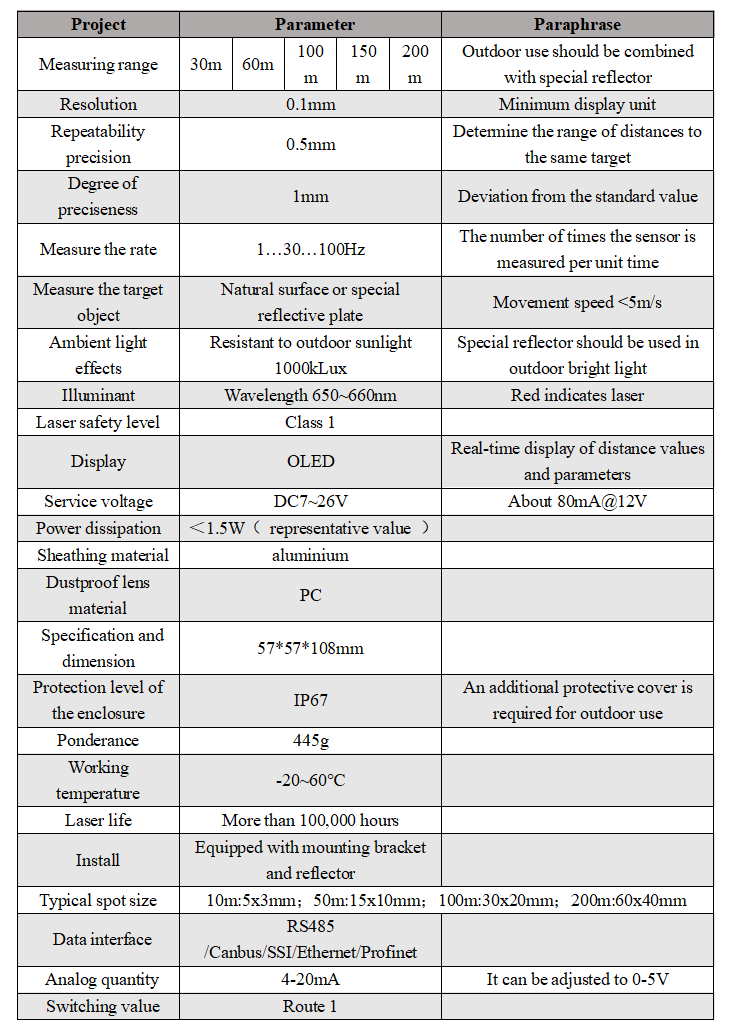

█ Performance Parame

█ SDC High Precision Laser Ranging Sensor - ±1mm accuracy, multi-interface integration, built for industrial automation

Millimeter-level high precision: Absolute accuracy ± 1mm, repeatability of 0.5mm, and resolution of 0.1mm, meeting the needs of precision measurement.

Multi-interface compatibility: Support RS485, 4-20mA, CAN bus and Ethernet communication, easy to access to various industrial control systems.

Strong anti-interference ability: It can work stably in a strong light environment of 1000kLux, and can adapt to complex light field conditions indoors and outdoors.

Rugged and durable: IP65 protection level, aluminum alloy housing, operating temperature -20°C~60°C, suitable for harsh industrial environments.

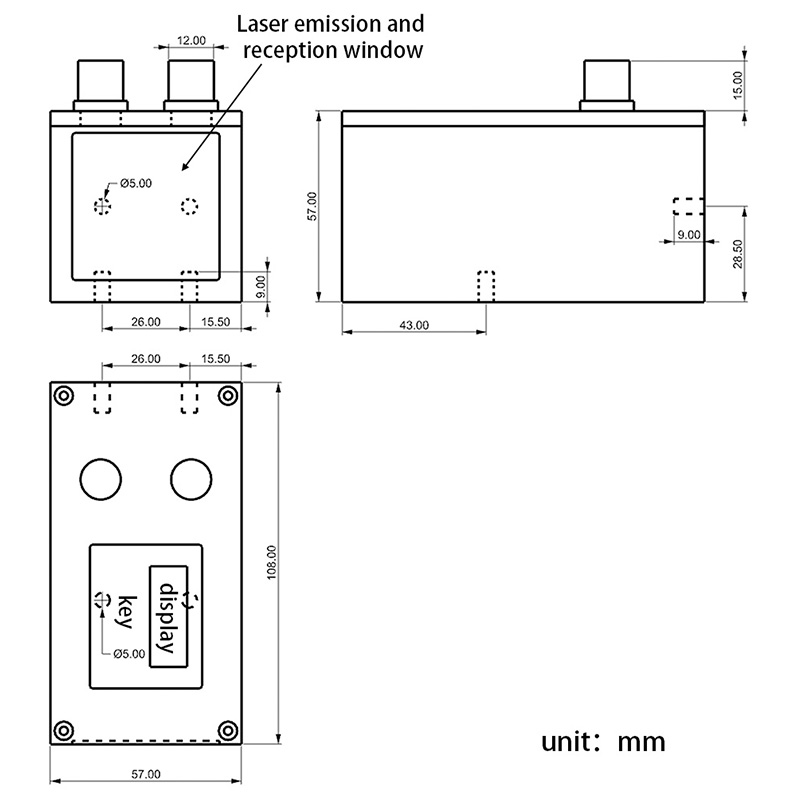

Flexible installation: Measuring 69×52×52mm, it is equipped with a mounting bracket and optional reflector for easy on-site integration.

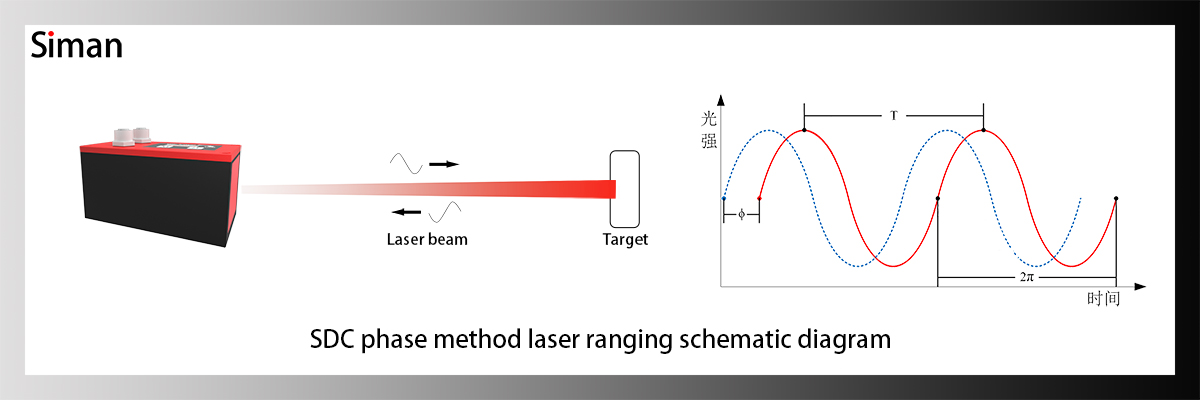

◆SDC series laser ranging sensor adopts the principle of IToF ranging to achieve high-precision measurement of ±1mm, with a maximum range of 100m. It supports RS485/4-20mA/CAN/Ethernet multiple industrial interfaces, with a response time as low as 10ms and a measurement frequency of up to 100Hz, suitable for high-speed and high-precision applications. The product has IP65 protection level, aluminum alloy shell is rugged and durable, operating temperature -20°C~60°C, anti-light interference ability up to 1000kLux, can operate stably in complex industrial environments. SDC sensor is designed for industrial automation scenarios such as stacker positioning, driving control, AGV navigation, and warehousing positioning system, and is an ideal ranging solution for high precision, multi-interface, and rapid response.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Reasons for customer selection

The SDC series was chosen for its high-precision measurement capability of ±1mm and its rich and flexible industrial interfaces. The sensor adopts IToF ranging technology, providing three range options: 30m/60m/100m, with a measurement frequency of up to 100Hz and a response time of as low as 10ms, taking into account accuracy and speed. The sensor features a compact design of 69×52×52mm with a mounting bracket and supports reflector mounting. It has IP65 protection level and a wide temperature working capability of -20°C~60°C, and is resistant to light interference up to 1000kLux, adapting to complex industrial environments. It supports RS485/4-20mA/CAN/Ethernet interfaces for easy integration of various control systems.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Advantages and features

Ultra-High Precision: Absolute measurement accuracy of ±1mm, repeatability of 0.5mm, and resolution of up to 0.1mm. This ensures extreme accuracy of data in applications such as precision positioning, inspection, and more.

Excellent anti-interference: Adopting the principle of IToF ranging, combined with excellent algorithms, it can work stably under strong ambient light (such as outdoor sunlight) of 1000kLux, unaffected by light changes.

High measurement frequency: The maximum measurement frequency is up to 100Hz, and the minimum response time is only 10ms. This means that it can quickly capture changes in the distance of moving targets, making it ideal for dynamic applications such as high-speed AGVs and stackers.

Rugged: Aluminum alloy housing with IP65 protection against dust and water currents.

Wide Temperature Operation: Operating temperature range of -20°C ~ +60°C, it can adapt to a variety of harsh industrial environments, from cold warehouses to high-temperature workshops.

Full interface support: RS485, 4-20mA analog, CAN bus, Ethernet and various industrial communication interfaces are provided, which can be easily connected to almost all types of automatic control systems, which is convenient for data acquisition and system networking.

Easy installation: Compact size (69*52*52mm) and equipped with mounting brackets, while supporting measurement of natural surfaces or special reflectors, flexible and easy installation.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Applications

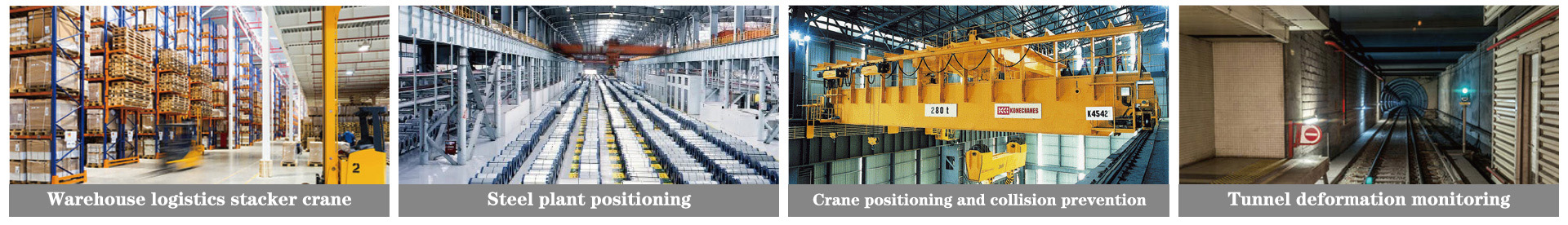

Warehousing and logistics stacker crane|steel mill positioning|crane positioning collision avoidance|tunnel deformation monitoring
