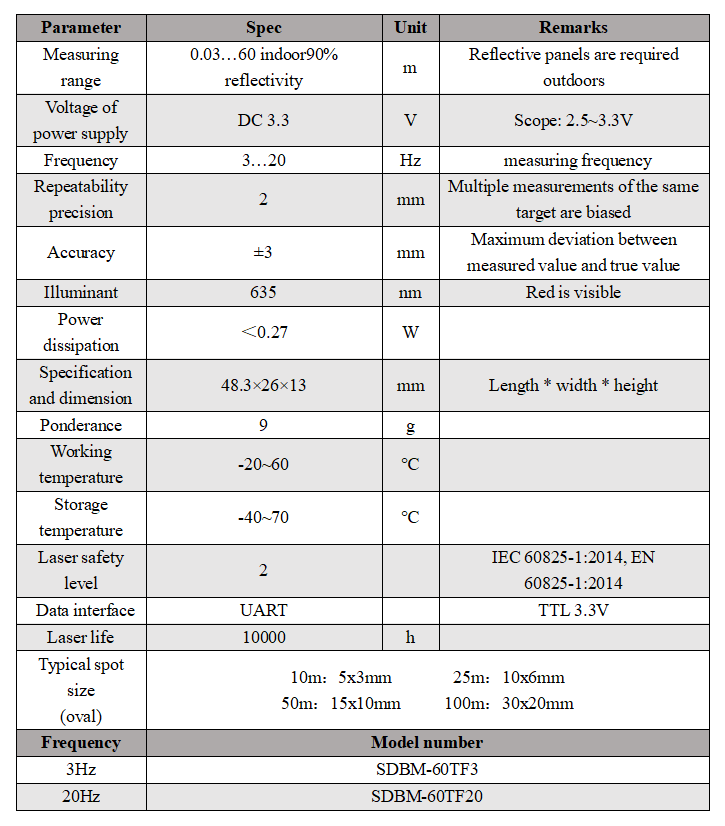

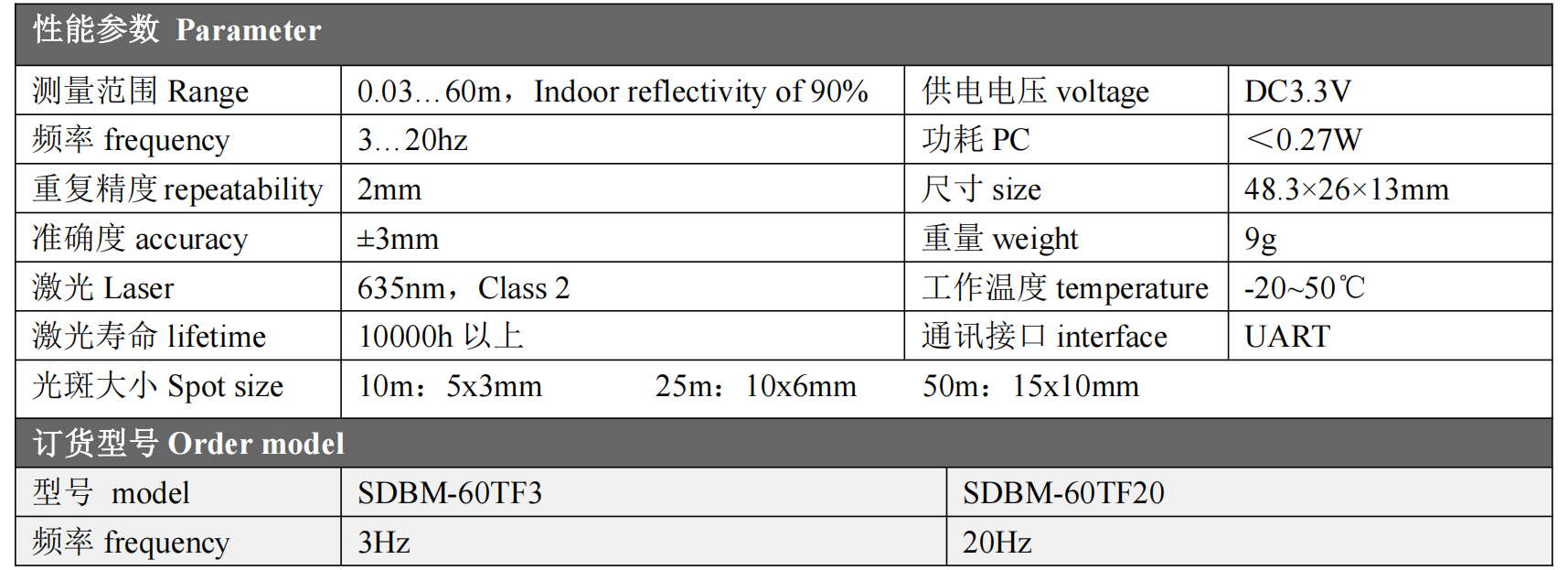

█Performance Parameters

█SDBM-60--high-precision laser ranging module UART phased laser ranging module

SDBM-60 series phase laser ranging module

Support single measurement, continuous measurement

60 meters, available indoors and outdoors

High precision: phased, millimeter-level accuracy

◆The SDBM-60 laser ranging module uses the phase method to detect the distance between target objects through the non-contact transmission and reception of lasers.

The SDBM-60 laser ranging module has been developed for fast and accurate distance measurement. Even in harsh environments, it can still show excellent performance.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Reasons for customer selection

This medium-distance laser distance sensor is not only small in size (50*26*13mm), but also easy to install, and the measurement distance is also good, and customers are often used in the construction industry, coal mining industry, sweeping robot industry, measuring container deformation, interior decoration room height and width measurement, etc.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

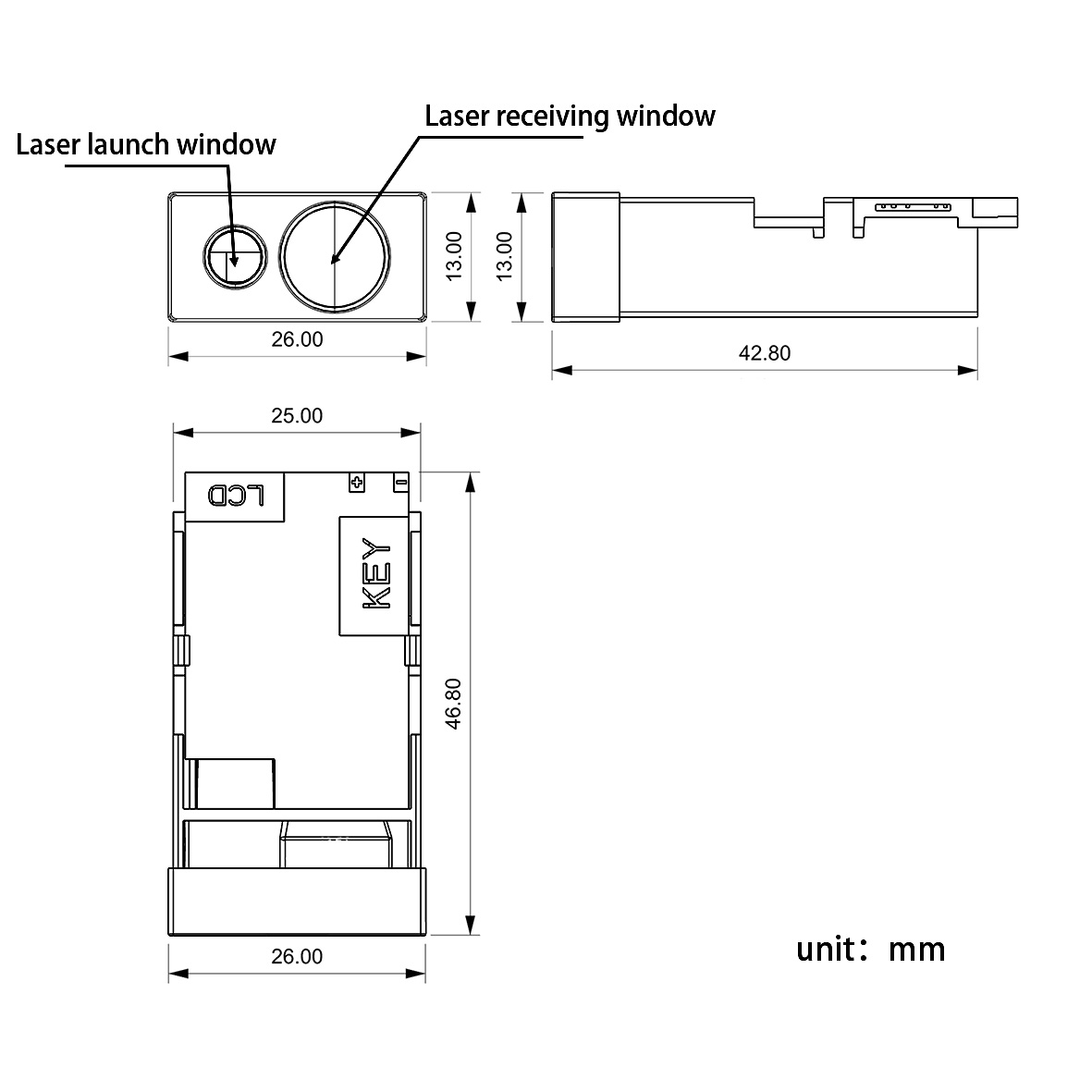

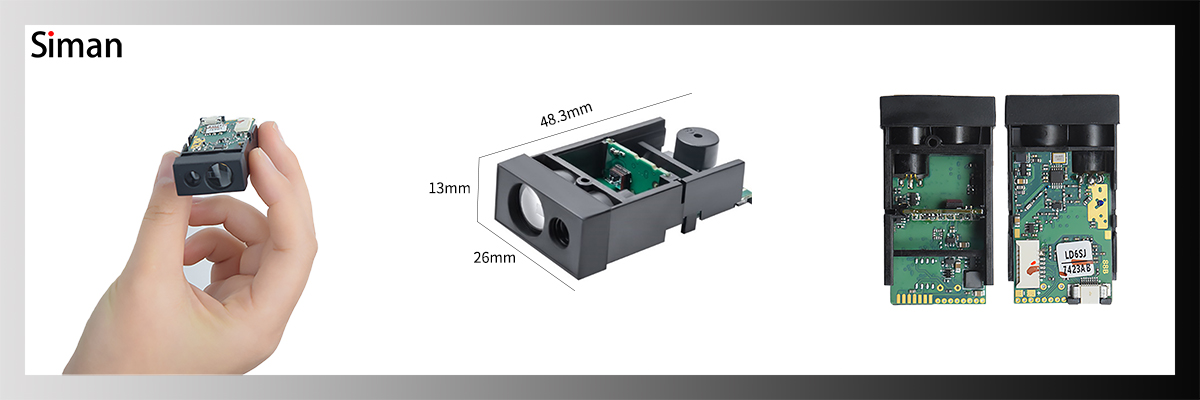

Small size: 50*26*13mm

Light weight: 9g

Precise: ± 2 mm

Maximum range: 60 m

Outdoor sunlight with reflector can be measured: 35 meters

Cost-effective, low power consumption, support secondary development, easy integration

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

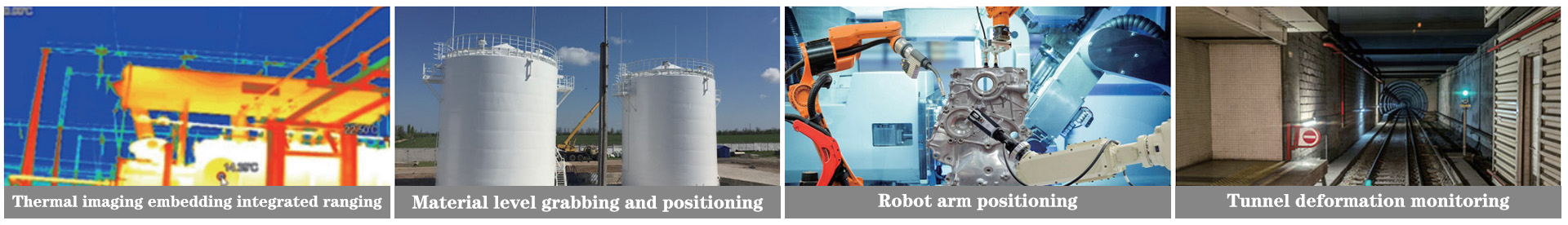

Miniaturization is suitable for embedded development, and is suitable for application scenarios such as robot industrial automation, security monitoring, and intelligent logistics. For example, thermal imaging embeds integrated ranging, pipeline measurement, displacement detection, track deformation, material level, vending machine gripping and positioning, robotic arm positioning and many other applications.
