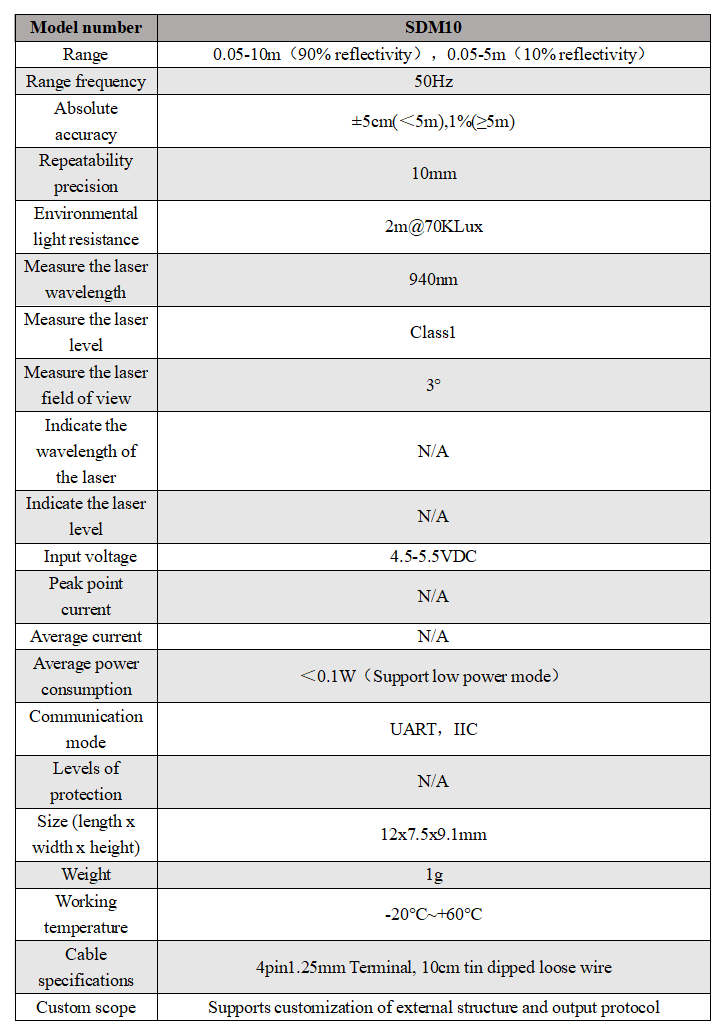

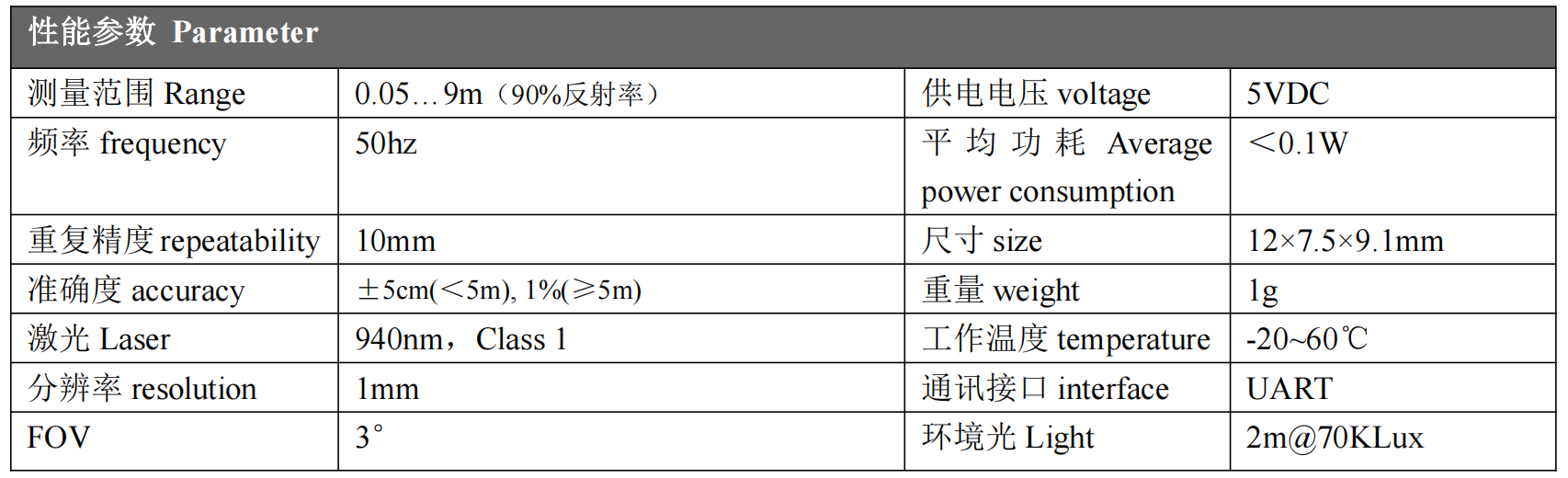

█ Performance parameters

█ SDA--10m single-point LiDAR based on DTOF technology

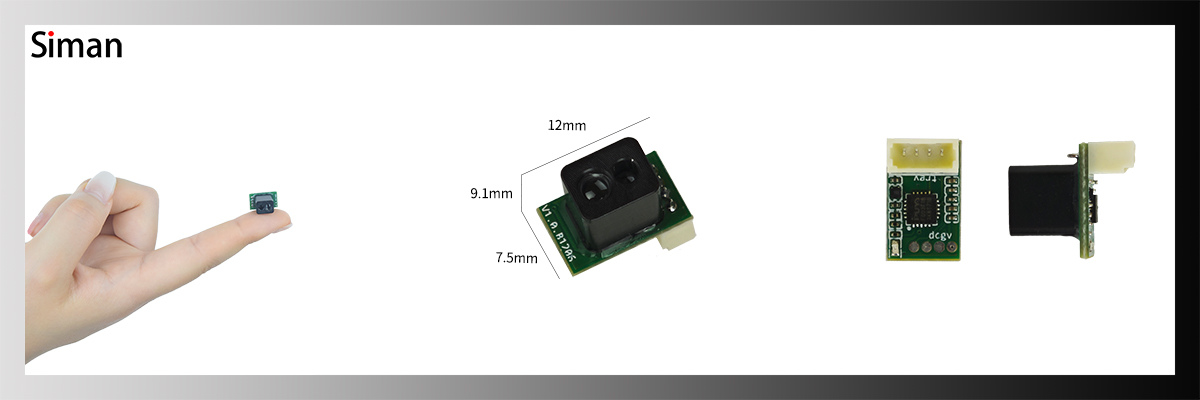

Fully integrated DTOF technology, ultra-small (12×7.5×9.1mm)

high-sensitivity 940nm infrared laser sensor, anti-ambient light up to

70K Lux reflectivity adaptive range (10m@90% reflectivity, 5m@10% reflectivity)

supports UART communication, default rate 460800bps (adjustable)

10m range, indoor and outdoor universal The blind area is only 5cm

with high precision: ±5cm (<5m), 1% (≥5m), and the resolution is 1mm

◆Based on DTOF technology, the anti-glare ability reaches 70K Lux, combined with centimeter-level accuracy (±5cm@<5m, 1%@≥5m) to ensure stable performance in outdoor strong light or complex industrial scenes, and the blind spot is only 5cm, which can accurately detect near-range targets. Wide temperature adaptability (-20°C~+60°C) and ultra-low power consumption design (<0.1W) meet the needs of all-weather harsh working conditions, and at the same time support UART communication (default 460800bps adjustable) and flexible protocol customization, helping customers quickly develop high-precision automation systems such as UAV height fixing, robot obstacle avoidance, and industrial light curtains.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█reasons for customer selection:

With its ultra-small size (12*7.5*9.1mm) and weight of only 1g, this miniature LiDAR is perfectly suitable for space-constrained scenes. 50Hz high-frequency refresh ensures real-time response, and 70KLux anti-light ability ensures stable operation in complex outdoor environments. The high-resolution (1mm) and multi-level precision algorithm take into account both close-range detail and long-range efficiency, and the UART interface simplifies the development process. Customers are widely used in UAV accurate height setting, industrial robot obstacle avoidance, AGV navigation and intelligent traffic monitoring, which is a cost-effective, easy-to-integrate lightweight ranging solution.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Advantages and features:

 Based on DTOF technology, non-contact laser detection, accurate and fast

>Wide temperature adaptability (-20°C~+60°C), stable operation in harsh environments> High sensitivity 940nm infrared laser sensor, ±5cm accuracy (<5m), 1% accuracy (≥5m), resolution 1mm
> Anti-glare interference up to 70K Lux, reflectivity adaptive range (10m@90%,
> Support UART communication (460800bps adjustable by default), 50Hz high-frequency response, blind zone only 5cm
> Ultra-low power consumption design (<0.1W), Class1 safety laser, industrial-grade reliability

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Applications:

DTOF technology combined with high anti-light interference ability to ensure stable ranging in outdoor strong light and complex industrial scenes; Ultra-small size (12×7.5×9.1mm) and lightweight design (1g) are suitable for high integration requirements such as UAV height fixing and AGV obstacle avoidance; Low power consumption and wide temperature characteristics, supporting all-weather continuous operation, widely used in industrial automation, robot navigation and safety monitoring fields.
