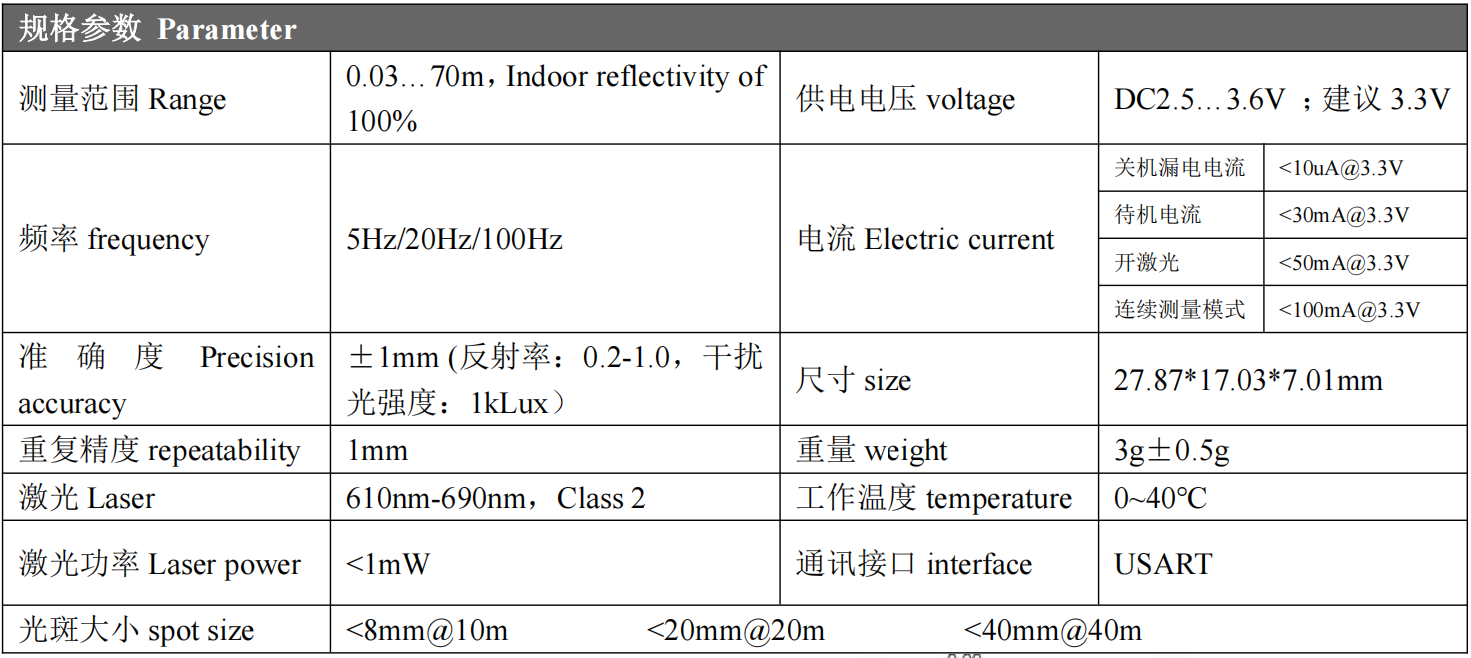

█Performance parameters

█SDXM series phase laser ranging module

Supports single measurement and continuous measurement

Phase-difference laser ranging (iToF) is adopted, and the accuracy can reach millimeters or even microns

Standby current < 30mA, continuous measurement mode < 100mA (dry battery version).

USART (TTL level) is supported, and the external conversion module supports RS232/RS485

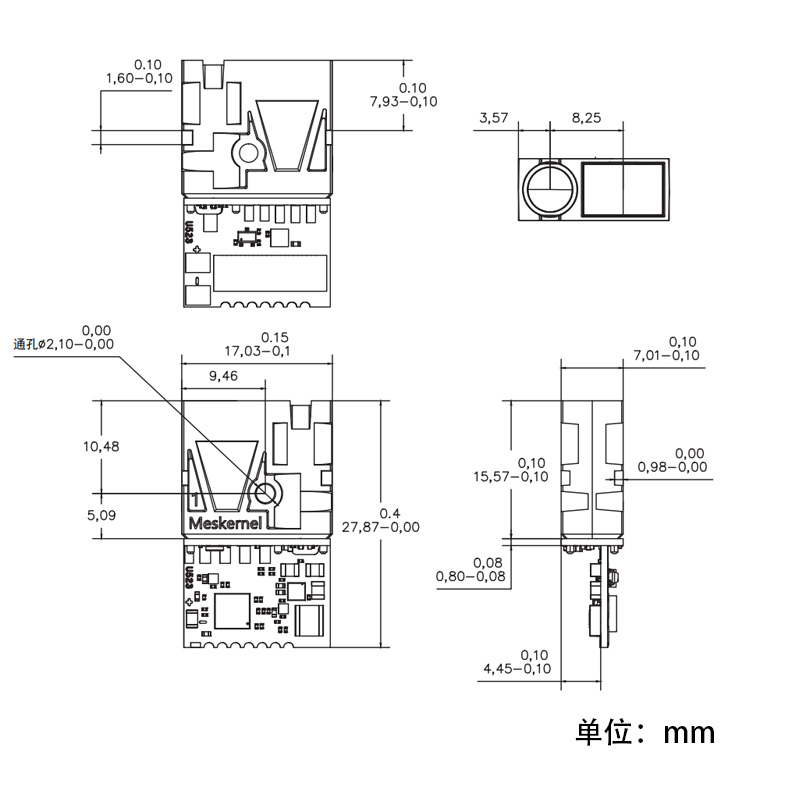

Measuring only 27.87mm × 17.03mm × 7.01mm, it weighs approximately 3g for easy integration.

◆SDXM laser ranging module adopts high-precision phase difference (iToF) to accurately detect the distance between target objects without contact by measuring the phase difference between the emitted laser and the receiving laser. SDXM laser ranging module is a cutting-edge product carefully developed to achieve fast, accurate, and stable distance measurement

Even under harsh conditions with strong ambient light interference or extremely low reflectivity of target objects, its excellent anti-interference algorithm and signal processing capabilities can still ensure millimeter-level measurement accuracy and excellent reliability.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█ Reasons for customer selection

This SDXM laser ranging module not only has the ultimate compact size (27.87*17.03*7.01mm), far exceeds the lightweight design of similar products (weighing only 3g), but also has millimeter-level high-precision measurement capabilities and strong environmental adaptability.

Its excellent comprehensive performance makes it widely used in industrial automation (such as robot navigation and positioning, AGV obstacle avoidance), intelligent equipment (such as sweepers, drone height setting), security monitoring (area intrusion detection), logistics detection (container deformation, volume measurement), scientific research and education and many other fields that require precision ranging, making it an ideal choice for pursuing a balance between accuracy, size and power consumption.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Advantages and features

Small size: 27.87mm×17.03mm×7.01mm

Light weight: 3g±0.5g

Precision: ± 1mm

Maximum range: 70 meters

Millimeter-level accuracy for stable measurement of all kinds of surfaces, even in complex light environments

Ultra-small size, lightweight design, easy to embed in various smart devices and industrial systems

It is widely used in robots, drones, industrial automation, smart homes, surveying and mapping and other fields.

▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁

█Applications

Warehousing and logistics stacker crane|steel mill positioning|crane positioning collision avoidance|tunnel deformation monitoring
